Question 6
This is about chemical cells.
A student investigated the voltage produced by different chemical cells.

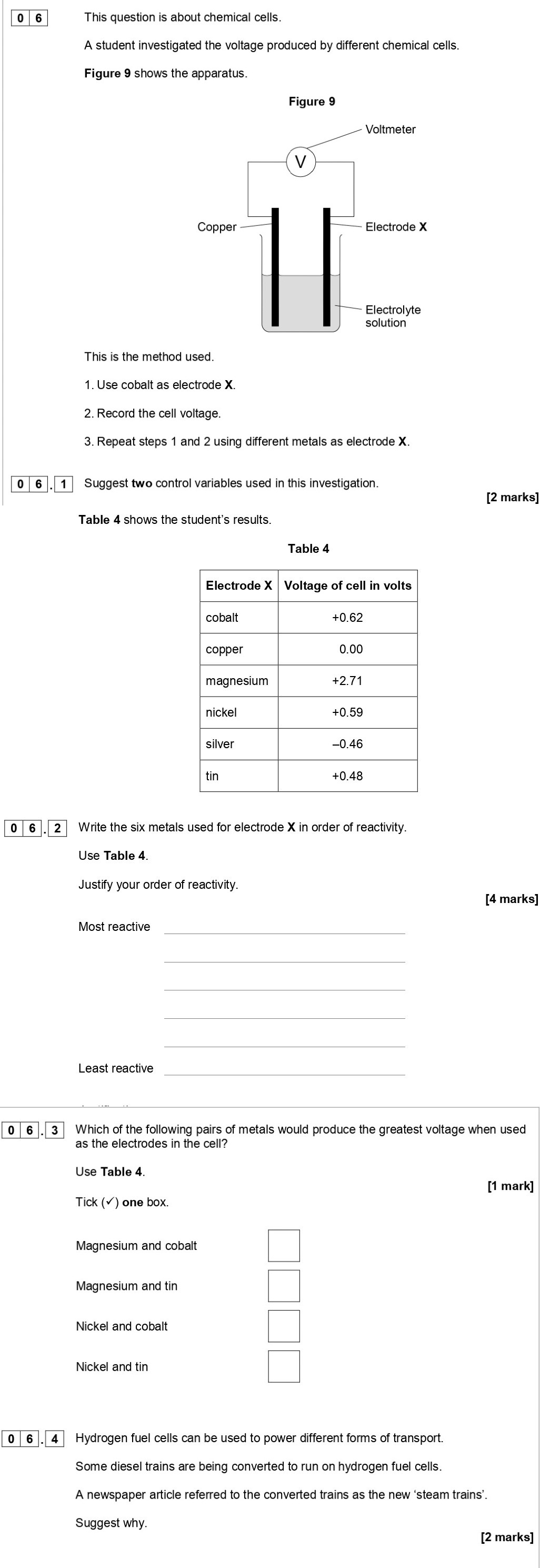

Figure 9 shows the apparatus.
This is the method used.
1. Use... show full transcript
Worked Solution & Example Answer:This is about chemical cells - AQA - GCSE Chemistry - Question 6 - 2019 - Paper 1
Step 1
Suggest two control variables used in this investigation.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The concentration of the electrolyte solution.
The temperature of the electrolyte solution.
Step 2
Write the six metals used for electrode X in order of reactivity.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Most reactive:
Magnesium
Cobalt
Nickel
Tin
Copper
Silver
Least reactive: Silver
Step 3
Justify your order of reactivity.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The higher the positive voltage, the more reactive the metal.
Magnesium has the highest voltage of +2.71 volts, indicating it is the most reactive. Silver has a negative voltage, which implies that it is less reactive than copper.
Step 4
Which of the following pairs of metals would produce the greatest voltage when used as the electrodes in the cell?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
✓ Magnesium and tin
Step 5
Suggest why.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Hydrogen fuel cells produce water by reacting hydrogen with oxygen, transforming energy and generating power, similar to traditional steam engines.
