Figure 19 shows a lamp connected to a d.c - Edexcel - GCSE Physics - Question 8 - 2022 - Paper 1

Question icon

Question 8

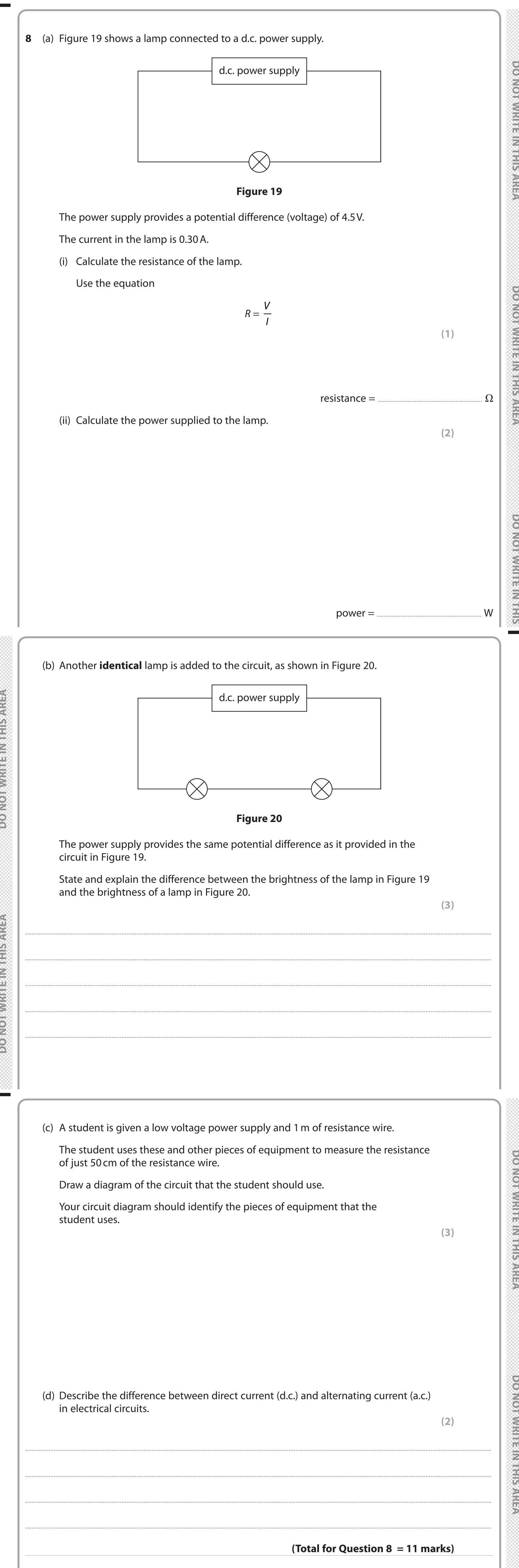

Figure-19-shows-a-lamp-connected-to-a-d.c-Edexcel-GCSE Physics-Question 8-2022-Paper 1.png

Figure 19 shows a lamp connected to a d.c. power supply. The power supply provides a potential difference (voltage) of 4.5 V. The current in the lamp is 0.30 A. (i... show full transcript

Worked Solution & Example Answer:Figure 19 shows a lamp connected to a d.c - Edexcel - GCSE Physics - Question 8 - 2022 - Paper 1

Step 1

Calculate the resistance of the lamp.

96%

114 rated

Answer

To calculate the resistance (R) of the lamp, we will use the equation:

R=VIR = \frac{V}{I}

Substituting the given values:

R=4.5 V0.30 AR = \frac{4.5 \text{ V}}{0.30 \text{ A}}

Calculating this gives:

R=15ΩR = 15 \Omega

Step 2

Calculate the power supplied to the lamp.

99%

104 rated

Answer

To calculate the power (P) supplied to the lamp, we can use the formula:

P=V×IP = V \times I

Substituting the known values:

P=4.5 V×0.30 AP = 4.5 \text{ V} \times 0.30 \text{ A}

Calculating this yields:

P=1.35 WP = 1.35 \text{ W}

Step 3

State and explain the difference between the brightness of the lamp in Figure 19 and the brightness of a lamp in Figure 20.

96%

101 rated

Answer

In Figure 19, the lamp operates alone and receives the full potential difference from the power supply. In contrast, in Figure 20, two identical lamps are in parallel, meaning each lamp receives the same voltage but shares the total current. As a result, the brightness of each lamp in Figure 20 will be less than that of the lamp in Figure 19 because the total current provided by the power supply is divided among both lamps, leading to a lower current through each one. Thus, the lamp in Figure 19 will be brighter.

Step 4

Draw a diagram of the circuit that the student should use.

98%

120 rated

Answer

To measure the resistance of a section of wire, the student should use a circuit that includes:

  • A low voltage power supply or battery,
  • An ammeter in series to measure current,
  • A voltmeter in parallel to measure voltage across the section of wire,
  • And the resistance wire itself.

The circuit diagram should look like this:

   +----[Ammeter]----[Resistance Wire]----+
   |                                      |
[Power Supply]                          [Voltmeter]
   |                                      |
   +--------------------------------------+

This setup allows the student to measure the voltage and current to calculate resistance.

Step 5

Describe the difference between direct current (d.c.) and alternating current (a.c.) in electrical circuits.

97%

117 rated

Answer

Direct current (d.c.) flows in one direction only, providing a constant voltage. In contrast, alternating current (a.c.) changes direction periodically, alternating the voltage over time. This is relevant in how each type of current powers devices: d.c. is typically used in batteries, while a.c. is commonly used in household power supplies.
