This question is about electrical circuits - Edexcel - GCSE Physics - Question 1 - 2022 - Paper 1
Question 1

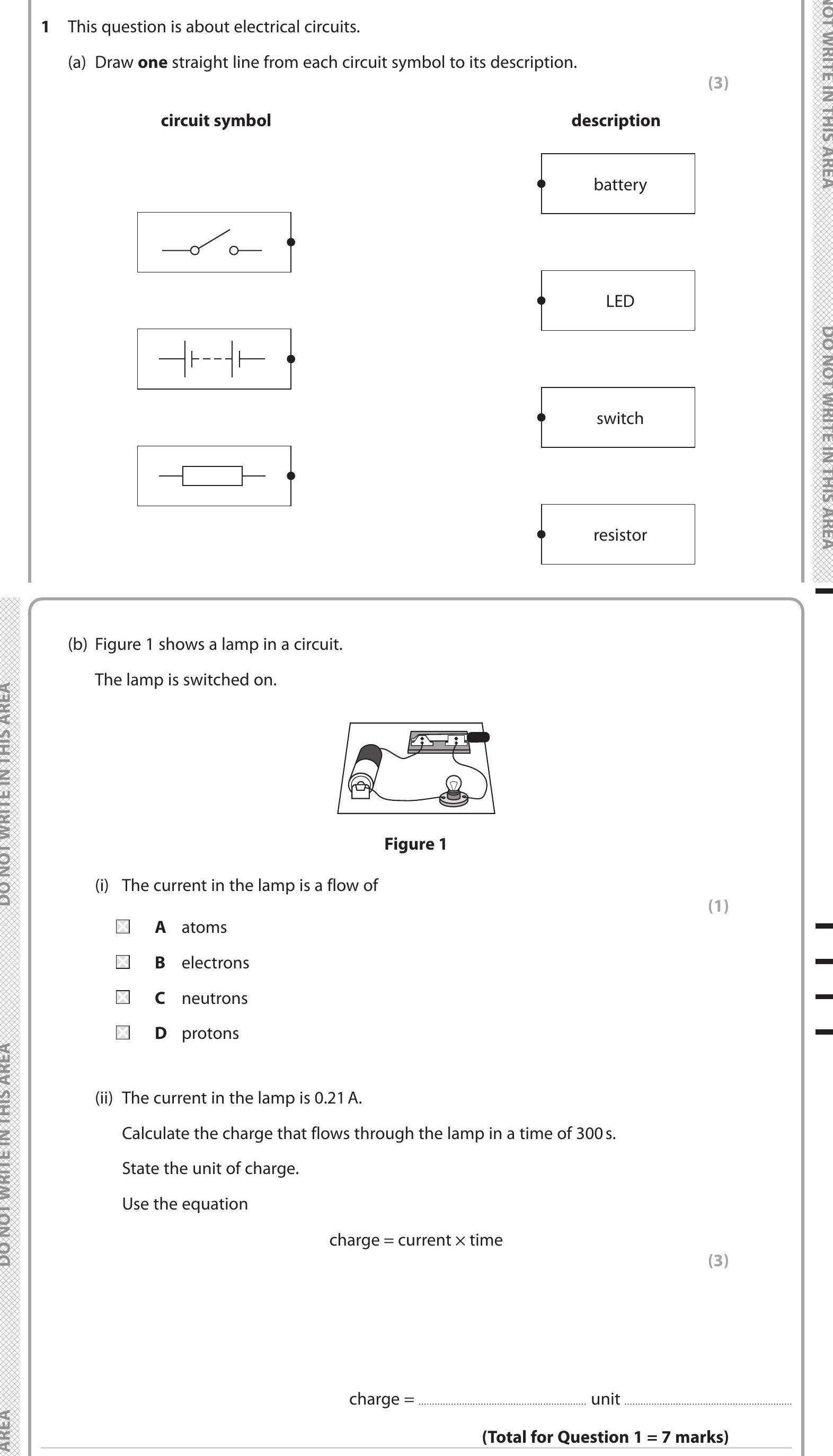

This question is about electrical circuits.
(a) Draw one straight line from each circuit symbol to its description.
circuit symbol
description
battery
LED
... show full transcript
Worked Solution & Example Answer:This question is about electrical circuits - Edexcel - GCSE Physics - Question 1 - 2022 - Paper 1
Step 1
Draw one straight line from each circuit symbol to its description.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Battery - corresponds to the battery symbol.
LED - corresponds to the LED symbol.
Switch - corresponds to the switch symbol.
Resistor - corresponds to the resistor symbol.
Step 2
The current in the lamp is a flow of
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The current in the lamp is a flow of electrons (B).
Step 3
Calculate the charge that flows through the lamp in a time of 300 s.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
