Galileo was one of the first scientists to use a telescope to study Venus - Edexcel - GCSE Physics - Question 1 - 2013 - Paper 1
Question 1

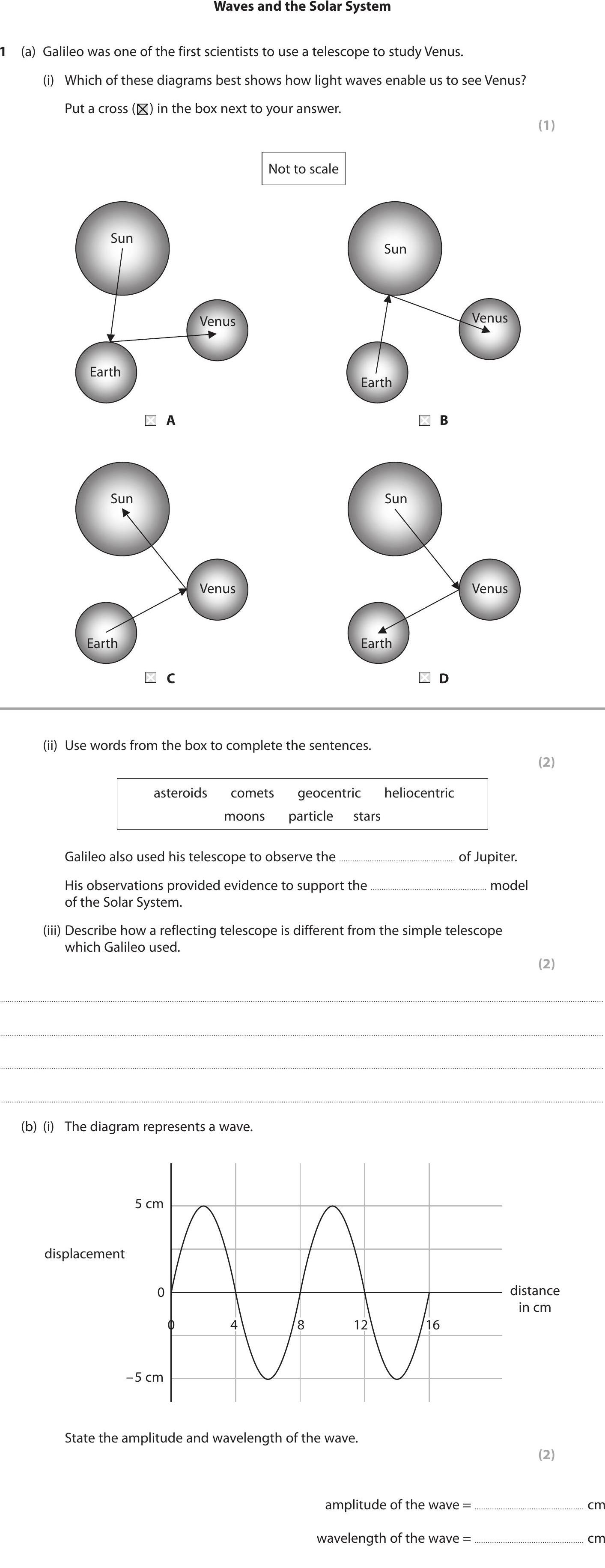

Galileo was one of the first scientists to use a telescope to study Venus.
(i) Which of these diagrams best shows how light waves enable us to see Venus?
Put a cros... show full transcript
Worked Solution & Example Answer:Galileo was one of the first scientists to use a telescope to study Venus - Edexcel - GCSE Physics - Question 1 - 2013 - Paper 1
Step 1
Which of these diagrams best shows how light waves enable us to see Venus?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The correct diagram is D. This diagram shows light from the Sun reflecting off Venus and then reaching the Earth, which illustrates how we observe Venus using light.
Step 2
Use words from the box to complete the sentences.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Galileo also used his telescope to observe the moons of Jupiter.
His observations provided evidence to support the heliocentric model of the Solar System.
Step 3
Describe how a reflecting telescope is different from the simple telescope which Galileo used.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A reflecting telescope uses mirrors to gather and focus light, allowing for larger apertures and clearer images. In contrast, the simple telescope used by Galileo primarily utilized lenses, which can result in more optical distortions and limits in light-gathering capability.
Step 4
State the amplitude and wavelength of the wave.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
