GCSE OCR Gateway Physics Energy Changes in a System: Which object has the most gravit

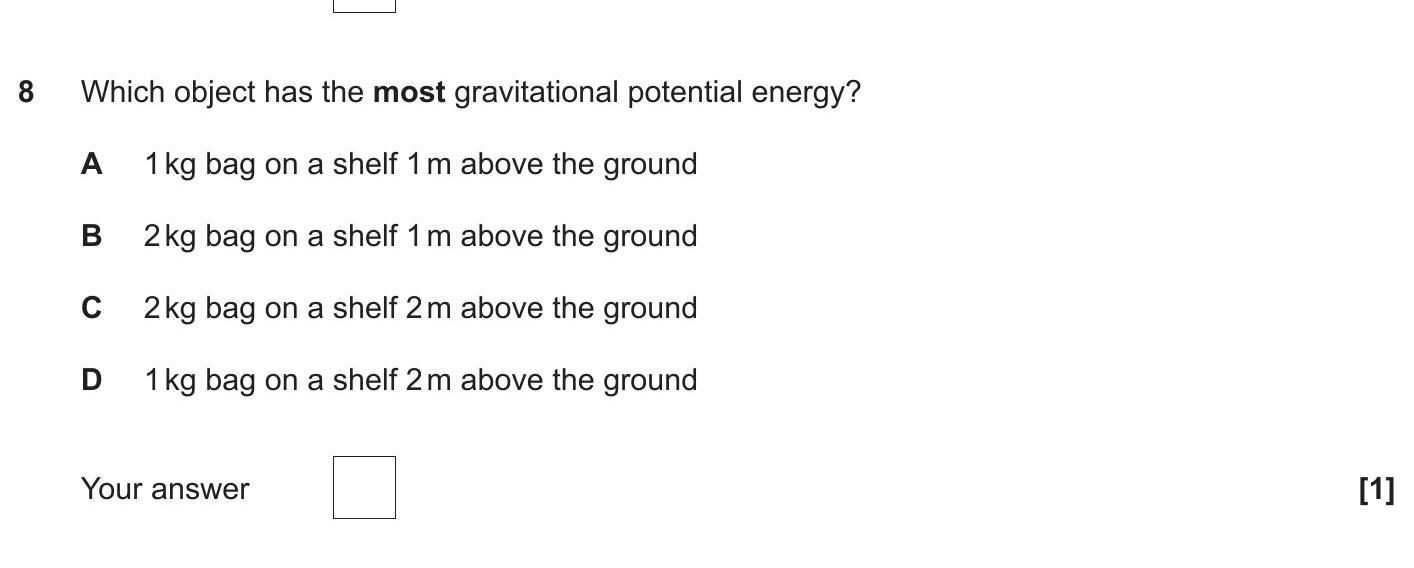

Which object has the most gravitational potential energy? A 1 kg bag on a shelf 1 m above the ground B 2 kg bag on a shelf 1 m above the ground C 2 kg bag on a shelf 2 m above the ground D 1 kg bag on a shelf 2 m above the ground - OCR Gateway - GCSE Physics - Question 8 - 2019 - Paper 3

Question 8

Which object has the most gravitational potential energy? A 1 kg bag on a shelf 1 m above the ground B 2 kg bag on a shelf 1 m above the ground C 2 kg bag on a... show full transcript

Worked Solution & Example Answer:Which object has the most gravitational potential energy? A 1 kg bag on a shelf 1 m above the ground B 2 kg bag on a shelf 1 m above the ground C 2 kg bag on a shelf 2 m above the ground D 1 kg bag on a shelf 2 m above the ground - OCR Gateway - GCSE Physics - Question 8 - 2019 - Paper 3

Step 1

A 1 kg bag on a shelf 1 m above the ground

96%

114 rated

Answer

To calculate gravitational potential energy (GPE), we use the formula:

GPE = mgh

Where:

m = mass (in kg)
g = acceleration due to gravity (approximately 9.81 m/s²)
h = height (in m)

For the 1 kg bag at 1 m:

GPE = 1 imes 9.81 imes 1 = 9.81 ext{ J}

Step 2

B 2 kg bag on a shelf 1 m above the ground

99%

104 rated

Answer

For the 2 kg bag at 1 m:

GPE = 2 imes 9.81 imes 1 = 19.62 ext{ J}

Step 3

C 2 kg bag on a shelf 2 m above the ground

96%

101 rated

Answer

For the 2 kg bag at 2 m:

GPE = 2 imes 9.81 imes 2 = 39.24 ext{ J}

Step 4

D 1 kg bag on a shelf 2 m above the ground

98%

120 rated

Answer

For the 1 kg bag at 2 m:

GPE = 1 imes 9.81 imes 2 = 19.62 ext{ J}

Step 5

Conclusion

97%

117 rated

Answer

Comparing all the calculated gravitational potential energies, we find:

A: 9.81 J
B: 19.62 J
C: 39.24 J
D: 19.62 J

The object with the most gravitational potential energy is the 2 kg bag on a shelf 2 m above the ground (C).

Which object has the most gravitational potential energy? A 1 kg bag on a shelf 1 m above the ground B 2 kg bag on a shelf 1 m above the ground C 2 kg bag on a shelf 2 m above the ground D 1 kg bag on a shelf 2 m above the ground - OCR Gateway - GCSE Physics - Question 8 - 2019 - Paper 3

A 1 kg bag on a shelf 1 m above the ground

B 2 kg bag on a shelf 1 m above the ground

C 2 kg bag on a shelf 2 m above the ground

D 1 kg bag on a shelf 2 m above the ground

Conclusion
