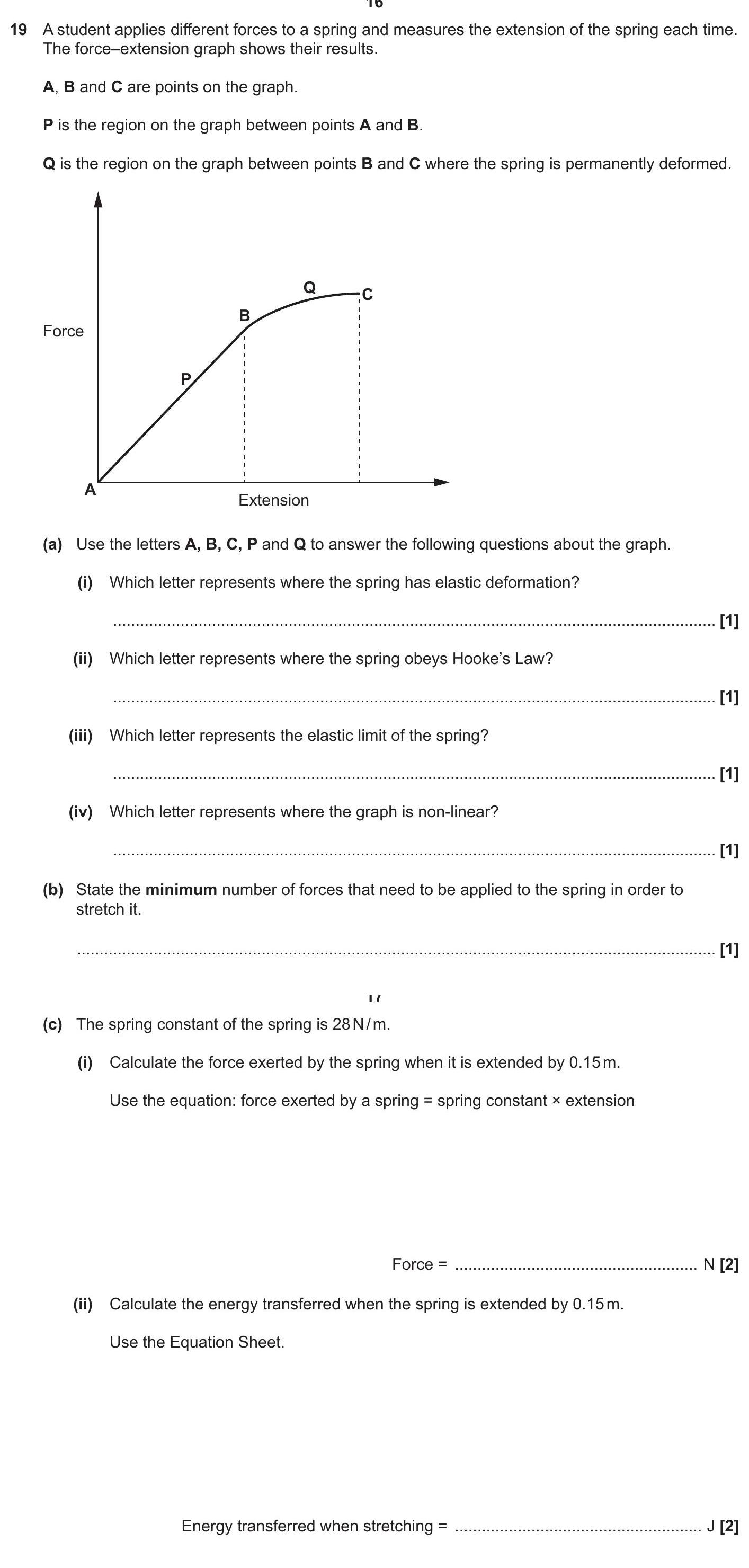

A student applies different forces to a spring and measures the extension of the spring each time. The force–extension graph shows their results.
A, B and C are poin... show full transcript
Worked Solution & Example Answer:A student applies different forces to a spring and measures the extension of the spring each time - OCR Gateway - GCSE Physics - Question 19 - 2023 - Paper 1
Step 1
Which letter represents where the spring has elastic deformation?
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The letter A represents where the spring has elastic deformation, as this is the region where the spring returns to its original length when the force is removed.
Step 2
Which letter represents where the spring obeys Hooke’s Law?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The letter P represents where the spring obeys Hooke's Law. This is the linear region of the graph where the force is proportional to the extension.
Step 3
Which letter represents the elastic limit of the spring?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The letter B represents the elastic limit of the spring. Beyond this point, the spring will not return to its original shape.
Step 4
Which letter represents where the graph is non-linear?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The letter Q represents where the graph is non-linear. This indicates that the spring has reached a permanent deformation.
Step 5
State the minimum number of forces that need to be applied to the spring in order to stretch it.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
At least one force must be applied to stretch the spring.
Step 6
Calculate the force exerted by the spring when it is extended by 0.15 m.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Using the formula:
extForce=extSpringConstantimesextExtension
we have:
extForce=28extN/mimes0.15extm=4.2extN.
Step 7
Calculate the energy transferred when the spring is extended by 0.15 m.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The energy transferred can be calculated using the formula:
