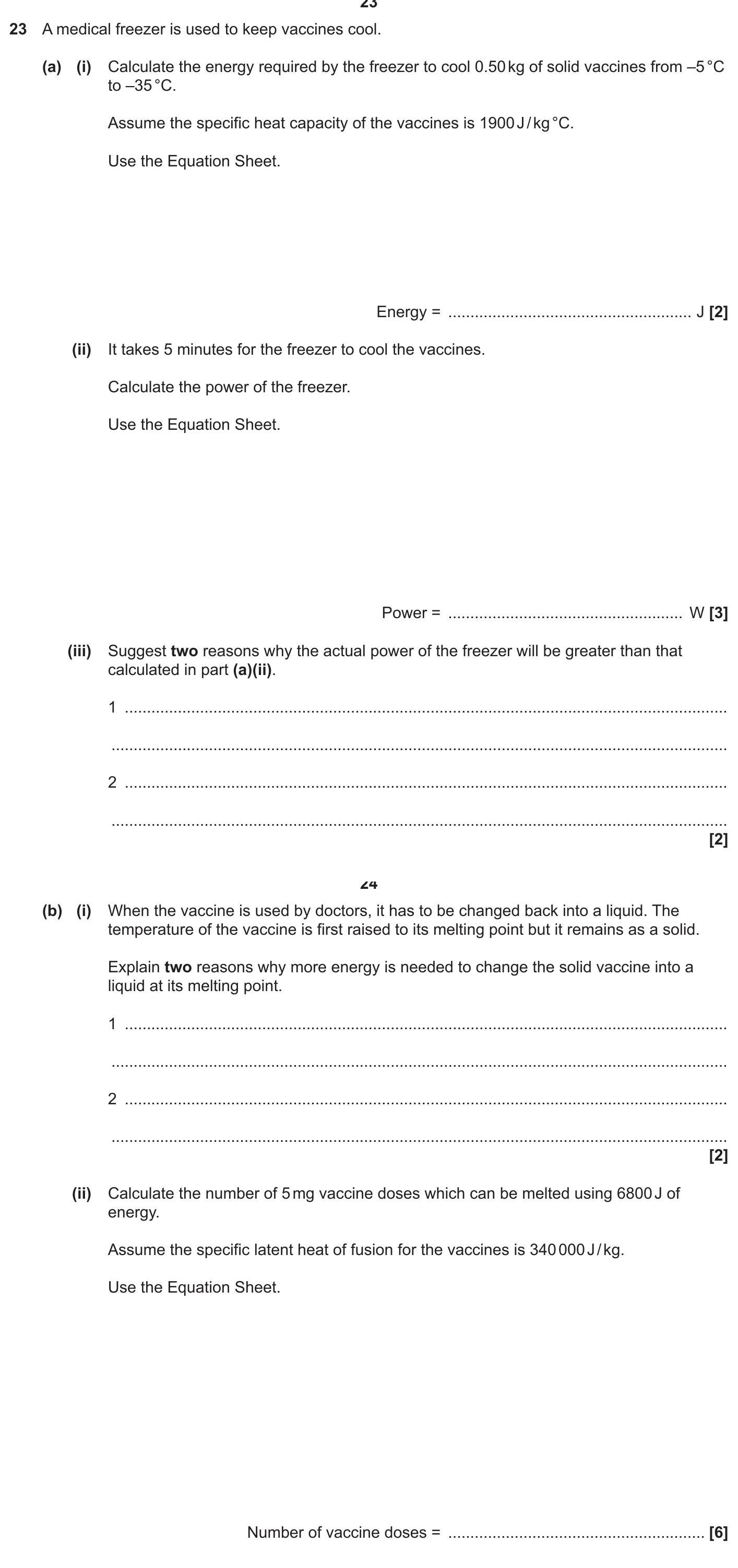

A medical freezer is used to keep vaccines cool. (a) (i) Calculate the energy required by the freezer to cool 0.50 kg of solid vaccines from -5 °C to -35 °C. Assume the specific heat capacity of the vaccines is 1900 J/kg °C. Use the Equation Sheet. Energy = ................................ (ii) It takes 5 minutes for the freezer to cool the vaccines. Calculate the power of the freezer. Use the Equation Sheet. Power = ................................. W (iii) Suggest two reasons why the actual power of the freezer will be greater than that calculated in part (a)(ii). 1 2 (b) (i) When the vaccine is used by doctors, it has to be changed back into a liquid. The temperature of the vaccine is first raised to its melting point but it remains as a solid. Explain two reasons why more energy is needed to change the solid vaccine into a liquid at its melting point. 1 2 (ii) Calculate the number of 5 mg vaccine doses which can be melted using 6800 J of energy. Assume the specific latent heat of fusion for the vaccines is 340,000 J/kg. Use the Equation Sheet. Number of vaccine doses = ..............................

Photo AI

A medical freezer is used to keep vaccines cool - OCR Gateway - GCSE Physics - Question 23 - 2023 - Paper 3

Question 23

A medical freezer is used to keep vaccines cool. (a) (i) Calculate the energy required by the freezer to cool 0.50 kg of solid vaccines from -5 °C to -35 °C. Assume... show full transcript

Worked Solution & Example Answer:A medical freezer is used to keep vaccines cool - OCR Gateway - GCSE Physics - Question 23 - 2023 - Paper 3

Step 1

(a) (i) Calculate the energy required by the freezer to cool 0.50 kg of solid vaccines from -5 °C to -35 °C.

96%

114 rated

Answer

To calculate the energy required, we use the formula:

$Q = mc heta$

Where:

$Q$ = energy (in joules)
$m$ = mass (0.50 kg)
$c$ = specific heat capacity (1900 J/kg °C)
$heta$ = change in temperature = final temperature - initial temperature = (-35 °C) - (-5 °C) = -30 °C.

Substituting the values, we have:

$Q = 0.50 imes 1900 imes (-30)$ $Q = 0.50 imes 1900 imes 30 = 28500 ext{ J}$

Therefore, the energy required is 28500 J.

Step 2

(a) (ii) Calculate the power of the freezer.

99%

104 rated

Answer

Power can be calculated using the formula:

$P = \frac{E}{t}$

Where:

$P$ = power (in watts)
$E$ = energy (28500 J)
$t$ = time (in seconds). Since 5 minutes = 5 × 60 = 300 seconds, we have:

$P = \frac{28500}{300} = 95 ext{ W}$

Thus, the power of the freezer is 95 W.

Step 3

(a) (iii) Suggest two reasons why the actual power of the freezer will be greater than that calculated in part (a)(ii).

96%

101 rated

Answer

The freezer may have heat losses to the environment, which requires additional power to maintain the cooling.
The initial temperature of the vaccines may be higher than -5 °C, leading to greater energy requirements than calculated.

Step 4

(b) (i) Explain two reasons why more energy is needed to change the solid vaccine into a liquid at its melting point.

98%

120 rated

Answer

At the melting point, the vaccine particles need to overcome the intermolecular forces holding them in a solid structure, requiring additional energy.
The energy is also needed to facilitate the phase change from solid to liquid, which is not accounted for by temperature change alone.

Step 5

(b) (ii) Calculate the number of 5 mg vaccine doses which can be melted using 6800 J of energy.

97%

117 rated

Answer

To find the number of doses, we use the latent heat formula:

$Q = mL$

Where:

$Q$ = energy (6800 J)
$m$ = mass of the vaccine
$L$ = specific latent heat of fusion (340000 J/kg).

Rearranging gives:

$m = \frac{Q}{L} = \frac{6800}{340000} = 0.02 ext{ kg}$

Since 1 dose = 5 mg = 0.005 kg,

$ext{Number of doses} = \frac{0.02}{0.005} = 4$

Thus, 4 doses of 5 mg can be melted using 6800 J of energy.
