The diagram below represents transcription during protein synthesis - NSC Life Sciences - Question 2 - 2022 - Paper 2
Question 2

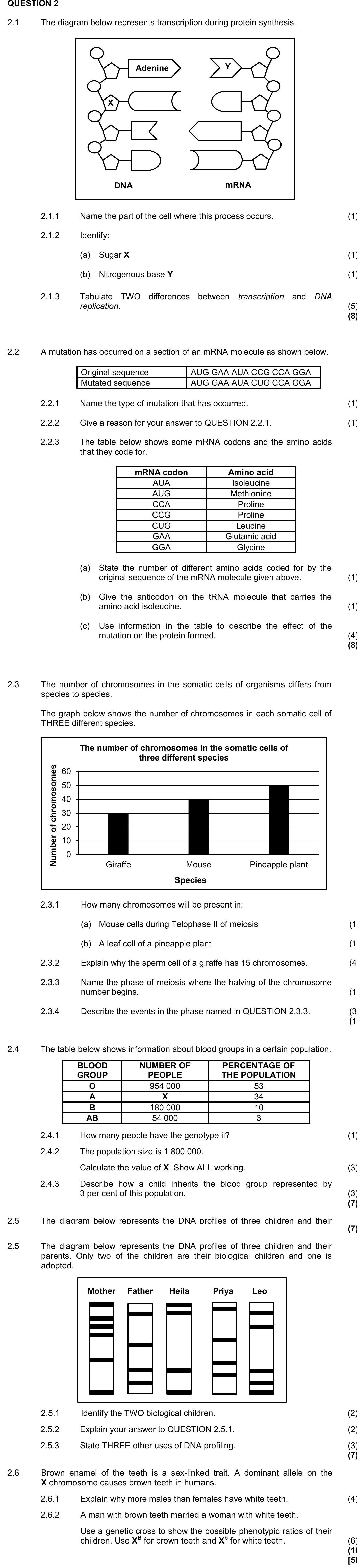

The diagram below represents transcription during protein synthesis.
2.1.1 Name the part of the cell where this process occurs.
2.1.2 Identify:
(a) Sugar X
(b) Nit... show full transcript
Worked Solution & Example Answer:The diagram below represents transcription during protein synthesis - NSC Life Sciences - Question 2 - 2022 - Paper 2
Step 1
Name the part of the cell where this process occurs.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Transcription occurs in the nucleus of the cell.
Step 2
Identify: (a) Sugar X
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Sugar X is deoxyribose.
Step 3
Identify: (b) Nitrogenous base Y
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Nitrogenous base Y is uracil (U).
Step 4
Tabulate TWO differences between transcription and DNA replication.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Transcription
DNA Replication
Only one strand acts as a template
Both strands act as templates
Free RNA nucleotides are used, which are complementary
Free DNA nucleotides are used, which are complementary
