FIGURE 6.1 shows components of welding equipment - NSC Mechanical Technology Welding and Metalwork - Question 6 - 2016 - Paper 1
Question 6

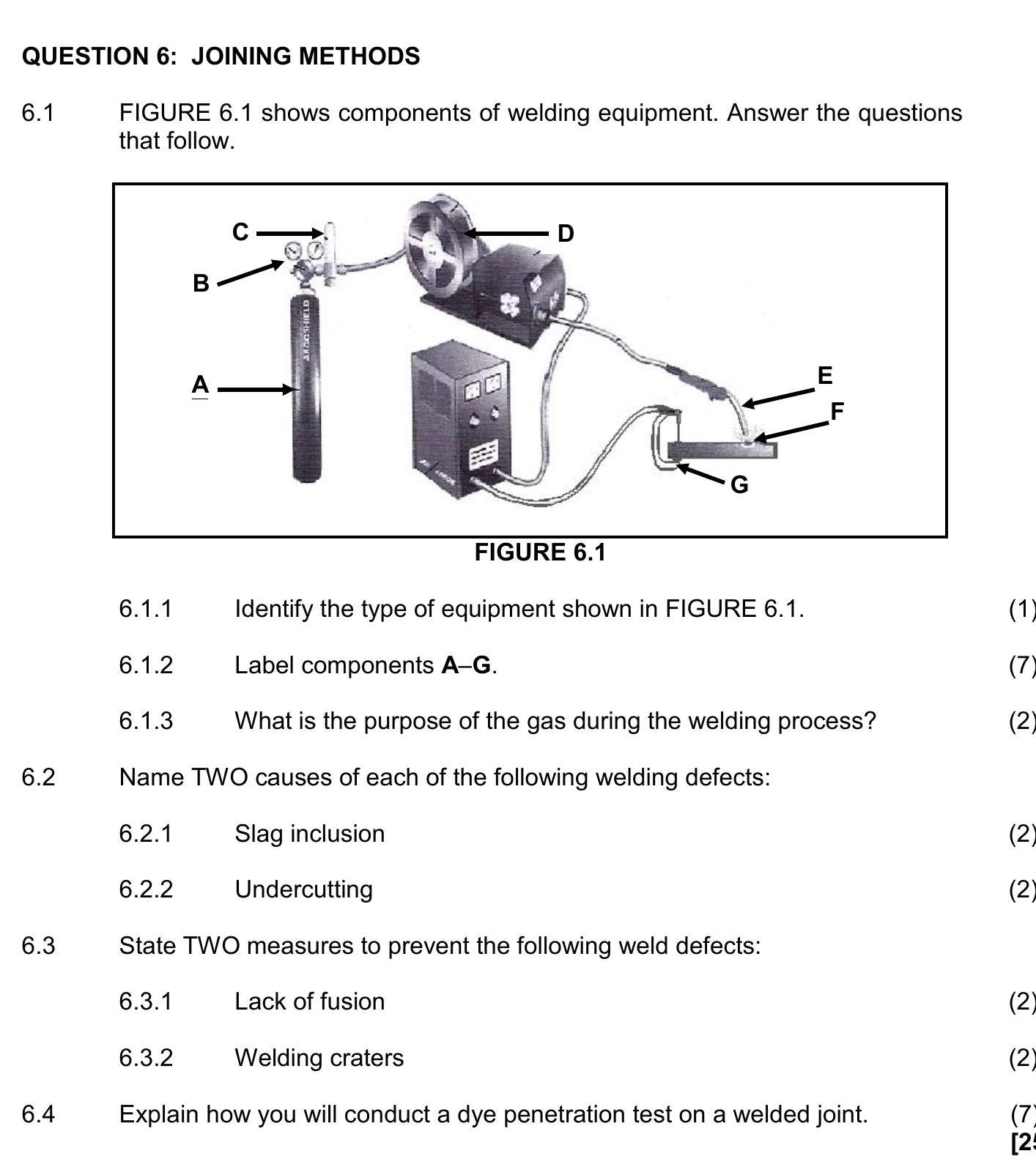

FIGURE 6.1 shows components of welding equipment. Answer the questions that follow.
6.1.1 Identify the type of equipment shown in FIGURE 6.1.
6.1.2 Label component... show full transcript
Worked Solution & Example Answer:FIGURE 6.1 shows components of welding equipment - NSC Mechanical Technology Welding and Metalwork - Question 6 - 2016 - Paper 1
Step 1
6.1.1 Identify the type of equipment shown in FIGURE 6.1.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The equipment shown in FIGURE 6.1 is MIG/MAGS welding equipment.
Step 2
6.1.2 Label components A–G.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A = Shielding gas cylinder
B = Regulator
C = Gas flow meter
D = Continuous wire reel
E = Welding gun
F = Arc
G = Earth clamp
Step 3
6.1.3 What is the purpose of the gas during the welding process?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The purpose of the gas during the welding process is to prevent oxygen from coming into contact with the molten metal. This ensures the integrity of the weld by protecting it from oxidation.
Step 4
6.2.1 Slag inclusion.
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Causes of slag inclusion include:
Included angle is too narrow.
Rapid chilling during welding.
Step 5
6.2.2 Undercutting.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Causes of undercutting include:
Faulty electrode manipulation.
Current too high during the welding process.
Step 6
6.3.1 Lack of fusion.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Measures to prevent lack of fusion include:
Adjust the electrode angle and prepare the V groove properly.
Use sufficient weave to melt the sides of the joint.
Step 7
6.3.2 Weld craters.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Measures to prevent weld craters include:
Use lower current during the welding process.
Employ proper welding techniques.
Step 8
6.4 Explain how you will conduct a dye penetration test on a welded joint.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To conduct a dye penetration test, follow these steps:
Clean the weld area that needs to be tested.
Spray the dye onto the clean surface.
Allow the dye to penetrate the weld joint for a specified time.
Clean excess dye with a suitable cleaning agent.
Spray a developer on the surface to draw out the dye trapped in any cracks.
Evaluate the resultant surface to identify all surface defects.
