The cell notation Zn(s)|Zn^{2+}(aq)|Cu^{2+}(aq)|Cu(s) represents a galvanic cell operating under standard conditions - NSC Technical Sciences - Question 6 - 2020 - Paper 2

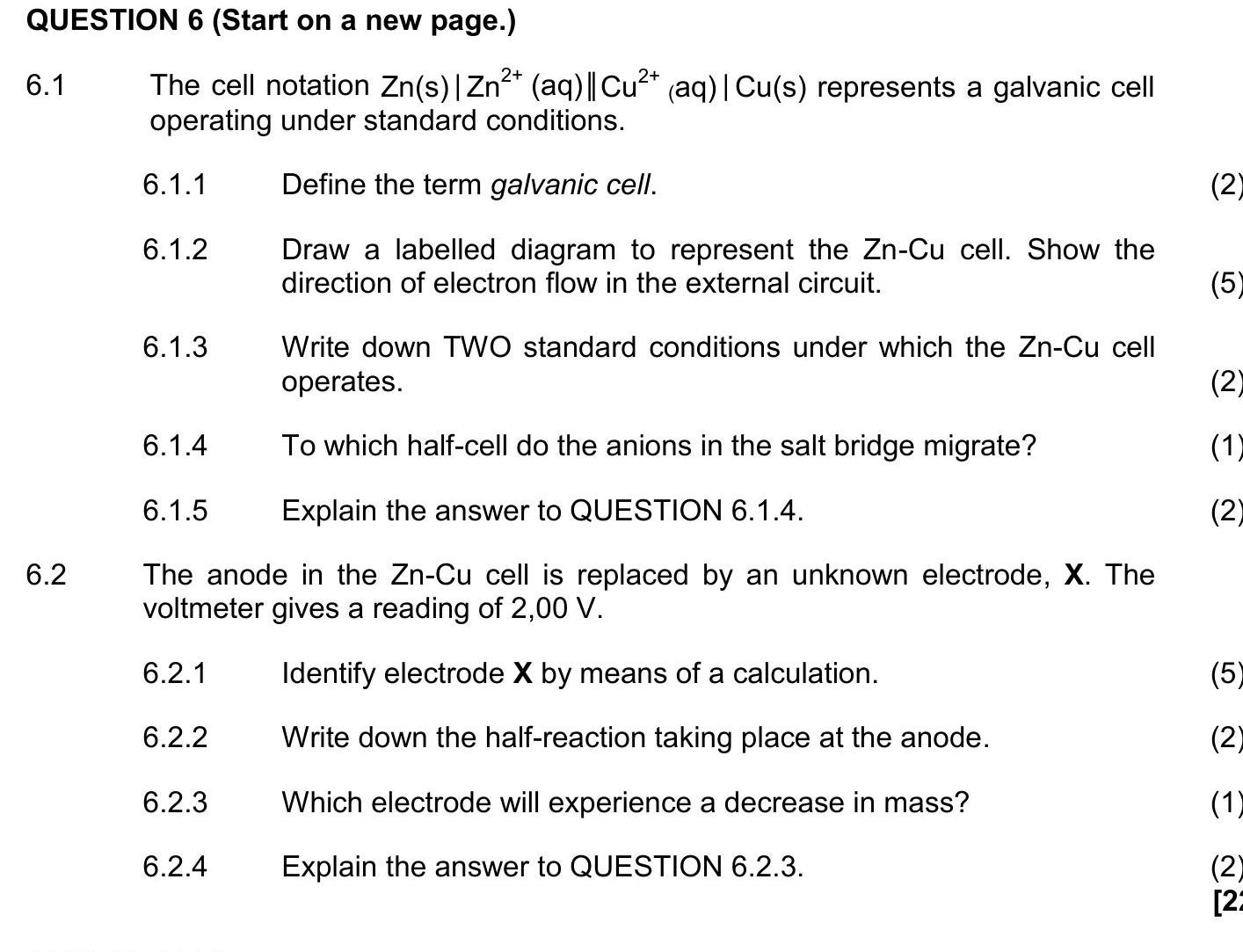

Question 6
The cell notation Zn(s)|Zn^{2+}(aq)|Cu^{2+}(aq)|Cu(s) represents a galvanic cell operating under standard conditions.
6.1.1 Define the term galvanic cell.
6.1.2 Dr... show full transcript
Worked Solution & Example Answer:The cell notation Zn(s)|Zn^{2+}(aq)|Cu^{2+}(aq)|Cu(s) represents a galvanic cell operating under standard conditions - NSC Technical Sciences - Question 6 - 2020 - Paper 2
Step 1
6.1.1 Define the term galvanic cell.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A galvanic cell is an electrochemical cell that converts chemical energy into electrical energy. This process occurs through spontaneous redox reactions, where oxidation and reduction reactions occur in separate half-cells.
Step 2
6.1.2 Draw a labelled diagram to represent the Zn-Cu cell. Show the direction of electron flow in the external circuit.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The labelled diagram of the Zn-Cu cell includes:
Anode (Zn electrode): where oxidation occurs, losing electrons.
Cathode (Cu electrode): where reduction occurs, gaining electrons.
Salt bridge: allows the movement of ions to maintain electrical neutrality.
Direction of electron flow: from the anode (Zn) to the cathode (Cu) through the external circuit.
Step 3
6.1.3 Write down TWO standard conditions under which the Zn-Cu cell operates.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The temperature must be at 25°C (298 K).
The concentration of the electrolytes should be 1 mol/dm³.
Step 4
6.1.4 To which half-cell do the anions in the salt bridge migrate?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The anions in the salt bridge migrate towards the anode half-cell (Zn). This is because the anode is losing electrons, creating a positive charge that attracts negatively charged ions.
Step 5
6.1.5 Explain the answer to QUESTION 6.1.4.
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Anions migrate towards the anode to neutralize the charge buildup that occurs as zinc is oxidized and goes into solution as Zn²⁺ ions, preventing potential buildup that would stop the cell from operating.
Step 6
6.2.1 Identify electrode X by means of a calculation.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given the cell potential (E°) is 2.00 V, we can assume that electrode X is a metal that, when oxidized, leads to a positive potential. Based on standard reduction potentials, electrode X is identified as Aluminum (Al).
Step 7
6.2.2 Write down the half-reaction taking place at the anode.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
At the anode, the half-reaction is:
ightarrow ext{Al}^{3+} (aq) + 3e^-$$
This reaction represents the oxidation of aluminum.
Step 8
6.2.3 Which electrode will experience a decrease in mass?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The electrode X (Aluminum) will experience a decrease in mass, as it is oxidized, losing Al atoms to form Al³⁺ ions.
Step 9
6.2.4 Explain the answer to QUESTION 6.2.3.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Electrode X loses mass because during oxidation, atoms of aluminum are converted into Al³⁺ ions. These ions enter the solution, reducing the amount of solid aluminum at the electrode, hence leading to a decrease in mass.
