Question 3

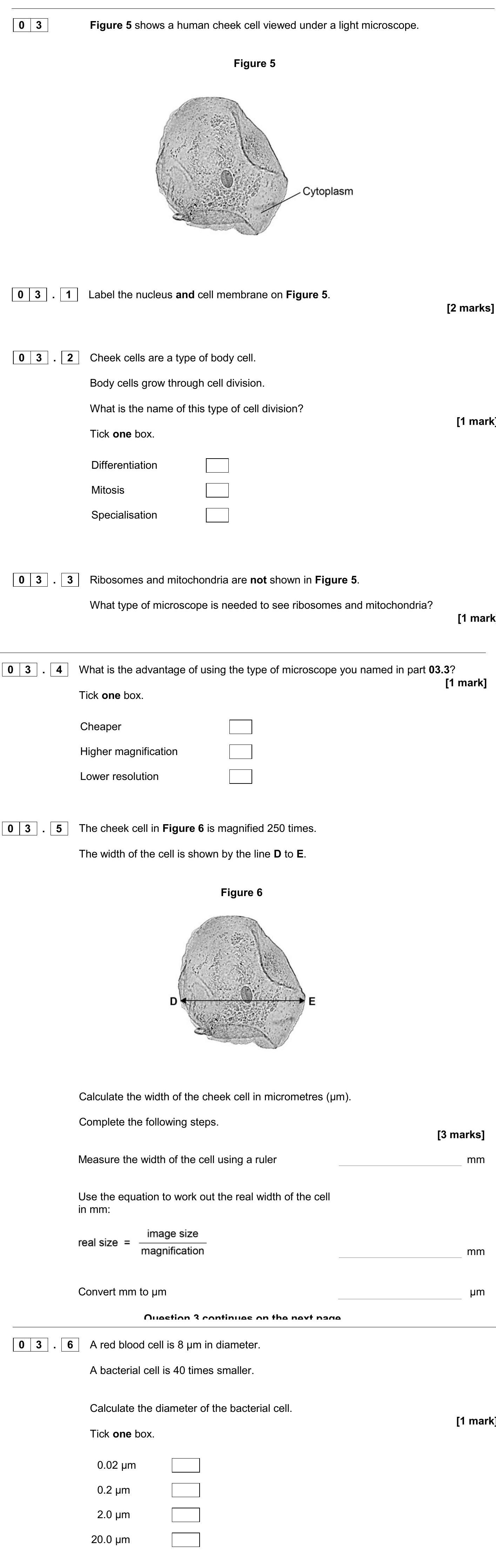

Figure 5 shows a human cheek cell viewed under a light microscope.
Label the nucleus and cell membrane on Figure 5.
Cheek cells are a type of body cell.
Body c... show full transcript
Worked Solution & Example Answer:Figure 5 shows a human cheek cell viewed under a light microscope - AQA - GCSE Biology - Question 3 - 2018 - Paper 1
Step 1
Label the nucleus and cell membrane on Figure 5.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The nucleus is the dense, spherical structure found within the cell, often located centrally. The cell membrane surrounds the cell and is a thin layer that defines the boundary of the cell.
Step 2
What is the name of this type of cell division?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The type of cell division that body cells undergo is called mitosis. This process results in the formation of two daughter cells that are genetically identical to the parent cell.
Step 3
What type of microscope is needed to see ribosomes and mitochondria?
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
An electron microscope is required to see ribosomes and mitochondria, as it provides a higher resolution and magnification than a light microscope.
Step 4
What is the advantage of using the type of microscope you named in part 03.3?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The main advantage of using an electron microscope is higher magnification, which allows for the visualization of very small structures such as ribosomes and mitochondria.
Step 5
Measure the width of the cell using a ruler
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The width of the cell measured using a ruler is 45 mm.
Step 6
Use the equation to work out the real width of the cell in mm:
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To find the real size of the cell, we can use the equation:
extrealsize=magnificationimage size
Substituting our values:
real size=25045 mm=0.18 mm
Step 7
Convert mm to µm
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To convert mm to micrometres (µm), we use the conversion factor that 1 mm = 1000 µm. Thus:
0.18 mm=0.18×1000=180 µm
Step 8
Calculate the diameter of the bacterial cell.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Given that a red blood cell is 8 µm in diameter and a bacterial cell is 40 times smaller, we calculate:
Diameter of bacterial cell=408 µm=0.2 µm
Thus, the diameter of the bacterial cell is 0.2 µm.
