The graphs of $y$ against $x$ represent four different types of proportionality - Edexcel - GCSE Maths - Question 13 - 2018 - Paper 2
Question 13

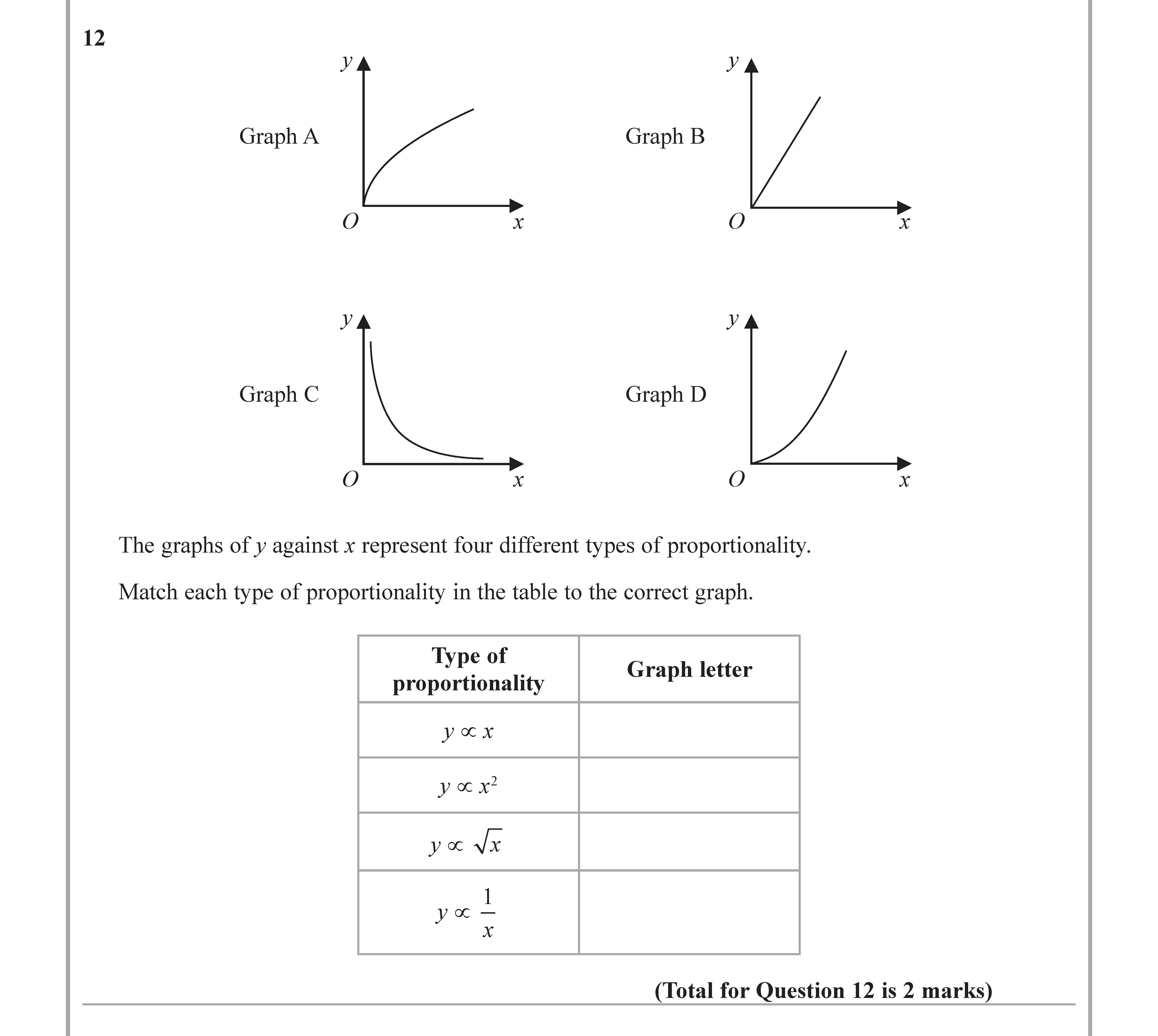

The graphs of $y$ against $x$ represent four different types of proportionality.
Match each type of proportionality in the table to the correct graph.
| Type of pro... show full transcript
Worked Solution & Example Answer:The graphs of $y$ against $x$ represent four different types of proportionality - Edexcel - GCSE Maths - Question 13 - 2018 - Paper 2
Step 1
$y \propto x$
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This represents direct proportionality, so it corresponds to Graph B.
Step 2
$y \propto x^{2}$
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This indicates quadratic proportionality, corresponding to Graph A.
Step 3
$y \propto \sqrt{x}$
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This signifies a square root relationship, corresponding to Graph C.
Step 4
$y \propto \frac{1}{x}$
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
This represents inverse proportionality, which corresponds to Graph D.
