Draw the circuit diagram of this electrical circuit in the space provided - Edexcel - GCSE Physics Combined Science - Question 1 - 2023 - Paper 2
Question 1

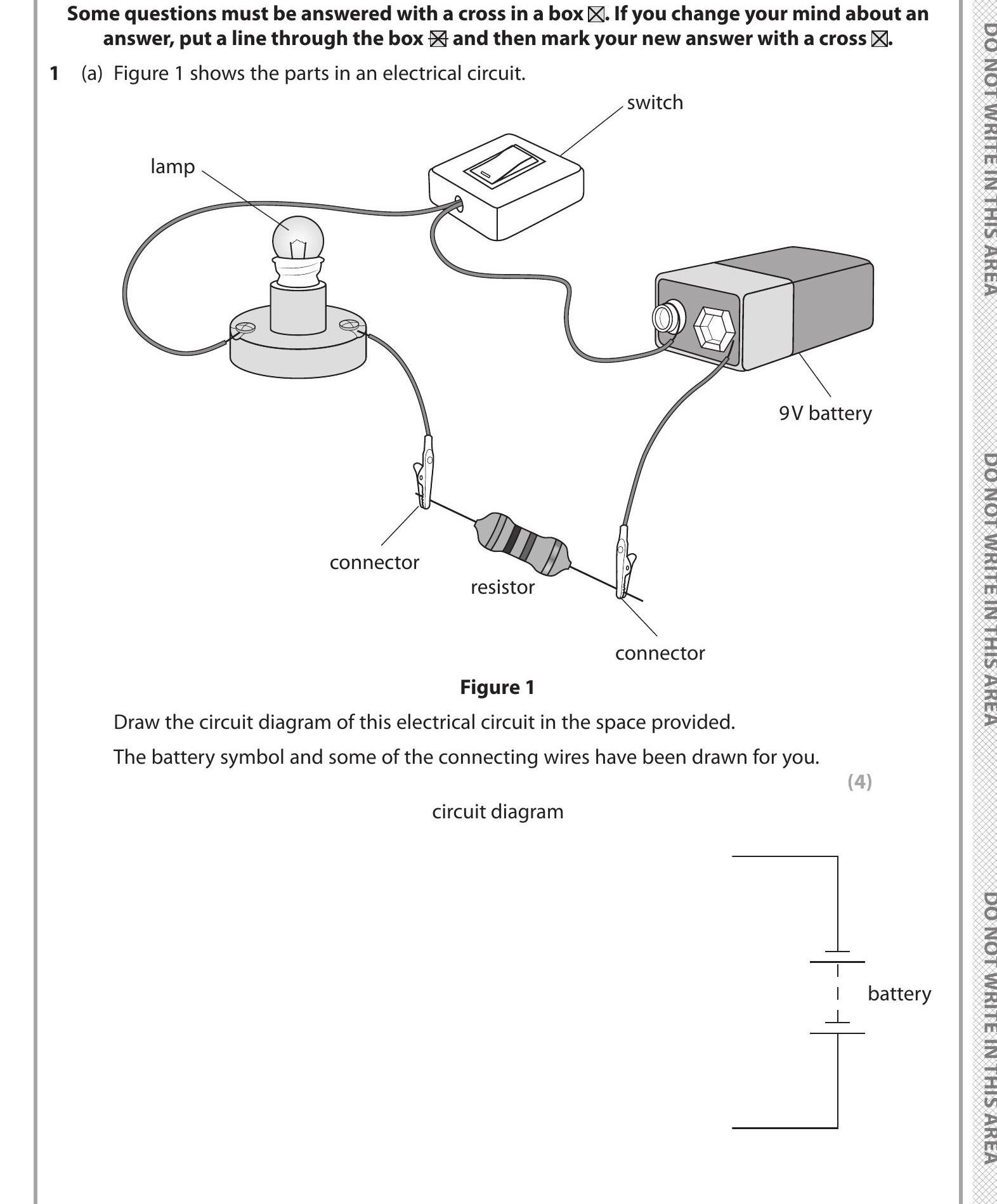

Draw the circuit diagram of this electrical circuit in the space provided. The battery symbol and some of the connecting wires have been drawn for you.
Figure 1 sho... show full transcript
Worked Solution & Example Answer:Draw the circuit diagram of this electrical circuit in the space provided - Edexcel - GCSE Physics Combined Science - Question 1 - 2023 - Paper 2
Step 1
Lamp Symbol
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
To represent the lamp in the circuit diagram, use the standard lamp symbol, which is a circle with a cross inside it. This indicates that there is a light bulb present in the circuit.
Step 2
Switch Symbol
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Next, add the switch symbol, which can be either an open or a closed switch. Ensure that it is placed in line with the current flow between the battery and the lamp.
Step 3
Resistor Symbol
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Include the resistor symbol, denoted by a zigzag line, in series with the lamp to show that it is part of the circuit.
Step 4
Complete Circuit Diagram
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Finally, draw the 9V battery symbol on the diagram, connecting all the components—lamp, switch, and resistor—using straight lines to represent the wires. Make sure to form a complete series circuit.
