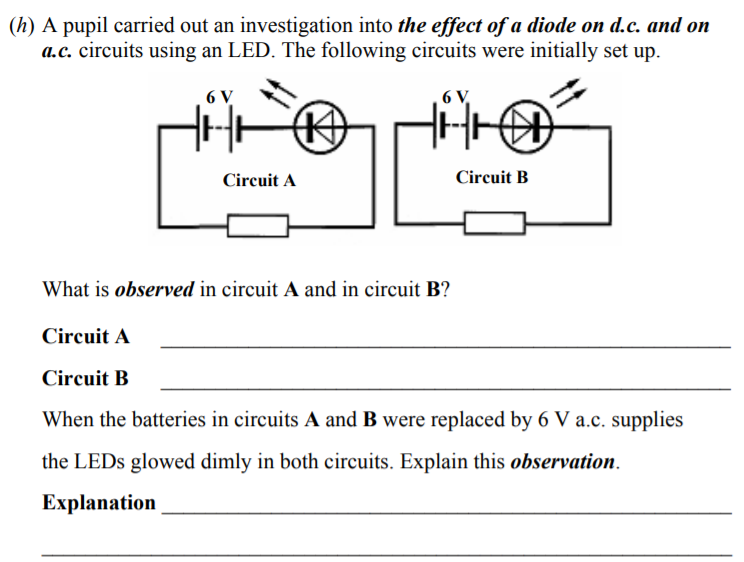

A pupil carried out an investigation into the effect of a diode on d.c. and on a.c. circuits using an LED. The following circuits were initially set up. What is obs... show full transcript

Worked Solution & Example Answer:A pupil carried out an investigation into the effect of a diode on d.c - Junior Cycle Science - Question h - 2006

Step 1

Circuit A

96%

114 rated

Answer

In circuit A, the LED glows. This is because the diode allows current to flow in one direction, with the battery providing a direct current (d.c.) supply. The LED requires a certain voltage to glow, and since the battery provides sufficient forward bias, the LED lights up.

Step 2

Circuit B

99%

104 rated

Answer

In circuit B, the LED does not glow. This is due to the arrangement of the diode, which prevents current flow in the reverse direction. Therefore, the LED does not receive the necessary current to illuminate.

Step 3

Explanation

96%

101 rated

Answer

When the batteries were replaced with 6 V a.c. supplies, the LEDs glowed dimly in both circuits. This occurs because the alternating current changes direction constantly. Although the diodes allow current to pass in one direction, they only conduct during half of the cycle (when forward biased). Consequently, the LEDs glow dimly as they only pass current for half the time, resulting in reduced brightness. The diodes in both circuits are forward biased for only about half of the total time the current is flowing.
