A smooth sphere A, of mass 3 kg, collides directly with another smooth sphere B, of mass 1 kg, on a smooth horizontal table - Leaving Cert Applied Maths - Question 5 - 2011

Question icon

Question 5

A-smooth-sphere-A,-of-mass-3-kg,-collides-directly-with-another-smooth-sphere-B,-of-mass-1-kg,-on-a-smooth-horizontal-table-Leaving Cert Applied Maths-Question 5-2011.png

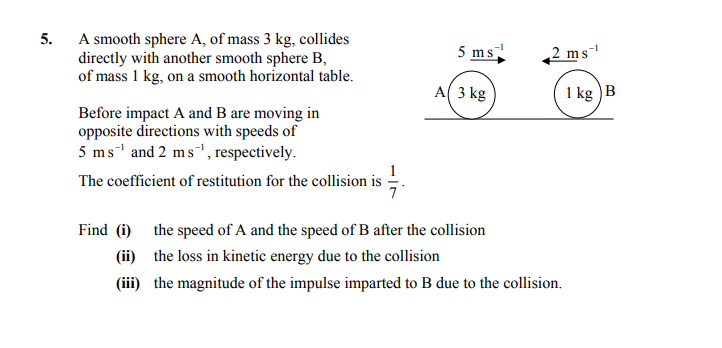

A smooth sphere A, of mass 3 kg, collides directly with another smooth sphere B, of mass 1 kg, on a smooth horizontal table. Before impact A and B are moving in opp... show full transcript

Worked Solution & Example Answer:A smooth sphere A, of mass 3 kg, collides directly with another smooth sphere B, of mass 1 kg, on a smooth horizontal table - Leaving Cert Applied Maths - Question 5 - 2011

Step 1

Find (i) the speed of A and the speed of B after the collision

96%

114 rated

Answer

To find the speeds of A and B after the collision, we use the principles of conservation of momentum and the coefficient of restitution.

  1. Conservation of Momentum: The total momentum before the collision equals the total momentum after the collision.

    [ 3(5) + 1(-2) = 3v_A + 1v_B ]

    [ 15 - 2 = 3v_A + v_B ]

    [ 13 = 3v_A + v_B , \quad (1) ]

  2. Coefficient of Restitution: This relates the velocities before and after the collision.

    [ \frac{v_B - v_A}{5 + 2} = \frac{1}{7} ]

    [ v_B - v_A = \frac{1}{7} \times 7 \quad \Rightarrow \quad v_B - v_A = 1 \quad (2) ]

  3. Solving the equations: Now we have two equations.

    From (2): [ v_B = v_A + 1 ]

    Substitute ( v_B ) in (1):

    [ 13 = 3v_A + (v_A + 1) ]

    [ 13 = 4v_A + 1 ]

    [ 12 = 4v_A ]

    [ v_A = 3 \text{ ms}^{-1} ]

    Now substituting ( v_A ) back into (2):

    [ v_B = 3 + 1 = 4 \text{ ms}^{-1} ]

So, the speeds after the collision are:
( v_A = 3 , \text{ms}^{-1} ) and ( v_B = 4 , \text{ms}^{-1} ).

Step 2

Find (ii) the loss in kinetic energy due to the collision

99%

104 rated

Answer

Now we calculate the kinetic energies before and after the collision.

  1. Initial Kinetic Energy (KE):

    [ KE_i = \frac{1}{2} \times 3 \times (5)^2 + \frac{1}{2} \times 1 \times (2)^2 ]

    [ KE_i = \frac{1}{2} \times 3 \times 25 + \frac{1}{2} \times 1 \times 4 ]

    [ KE_i = 39.5 , \text{J} ]

  2. Final Kinetic Energy (KE):

    [ KE_f = \frac{1}{2} \times 3 \times (3)^2 + \frac{1}{2} \times 1 \times (4)^2 ]

    [ KE_f = \frac{1}{2} \times 3 \times 9 + \frac{1}{2} \times 1 \times 16 ]

    [ KE_f = 21.5 , \text{J} ]

  3. Loss in Kinetic Energy:

    [ Loss = KE_i - KE_f ]

    [ Loss = 39.5 - 21.5 = 18 , \text{J} ]

Thus, the loss in kinetic energy due to the collision is 18 J.

Step 3

Find (iii) the magnitude of the impulse imparted to B due to the collision

96%

101 rated

Answer

Finally, we calculate the impulse imparted to B by using the formula:

[ I = m(v_B - u_B) ]

Where:

  • ( m ) is mass of B = 1 kg
  • ( v_B ) is the final velocity of B = 4 ms⁻¹
  • ( u_B ) is the initial velocity of B = -2 ms⁻¹ (opposite direction)

[ I = 1(4 - (-2)) = 1(4 + 2) = 1 imes 6 = 6 , \text{Ns} ]

Therefore, the magnitude of the impulse imparted to B due to the collision is 6 Ns.
