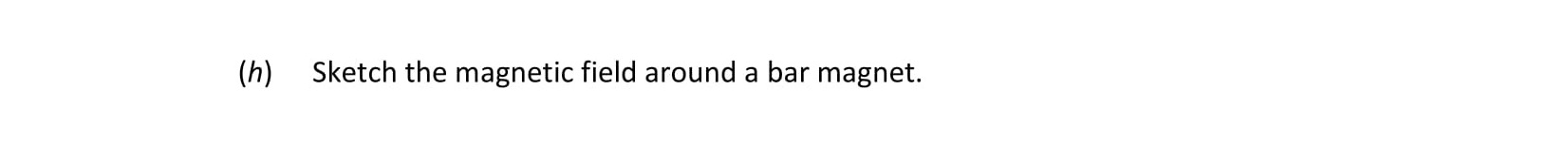

Sketch the magnetic field around a bar magnet.

Worked Solution & Example Answer:Sketch the magnetic field around a bar magnet. - Leaving Cert Physics - Question h - 2018

Step 1

Sketch the magnetic field lines

96%

114 rated

Answer

To illustrate the magnetic field around a bar magnet, begin by drawing the outline of the bar magnet itself. The bar magnet will typically have a North (N) and South (S) pole indicated at each end.

Next, draw the magnetic field lines extending from the North pole to the South pole. These lines should emerge from the North pole and curve around, showing the direction of the magnetic force. Include at least two distinct field lines to represent the field correctly. The lines should be drawn closer together near the poles, indicating a stronger magnetic field, and further apart as they extend away from the magnet, indicating a weaker field.

Remember to label the North and South poles clearly to complete your diagram.
