Question 10

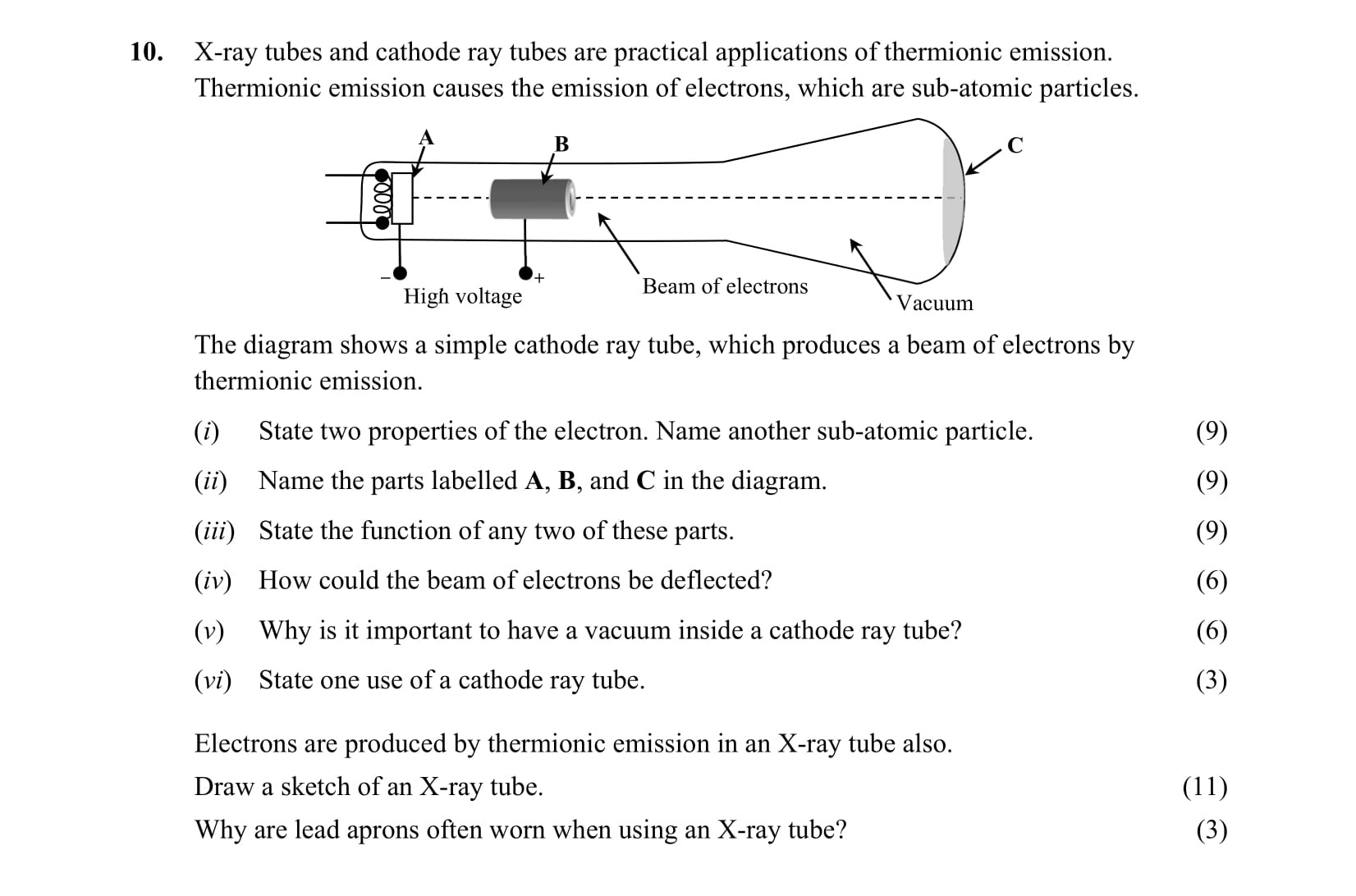

X-ray tubes and cathode ray tubes are practical applications of thermionic emission. Thermionic emission causes the emission of electrons, which are sub-atomic parti... show full transcript
Worked Solution & Example Answer:X-ray tubes and cathode ray tubes are practical applications of thermionic emission - Leaving Cert Physics - Question 10 - 2016
Step 1
State two properties of the electron. Name another sub-atomic particle.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The properties of the electron are:
It has a negative charge.
It has a very small mass compared to protons and neutrons.
Another sub-atomic particle is the proton.
Step 2
Name the parts labelled A, B, and C in the diagram.
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A: Cathode
B: Anode
C: Screen
Step 3
State the function of any two of these parts.
96%
101 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The cathode emits electrons when heated (thermionic emission).
The anode attracts the emitted electrons, allowing them to move towards the screen.
Step 4
How could the beam of electrons be deflected?
98%
120 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
The beam of electrons can be deflected by using magnetic fields or electric fields. An external magnetic field can bend the path of the electrons due to the Lorentz force.
Step 5
Why is it important to have a vacuum inside a cathode ray tube?
97%
117 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A vacuum is essential to prevent the electrons from colliding with air molecules, which would scatter them and reduce the effectiveness of the electron beam.
Step 6
State one use of a cathode ray tube.
97%
121 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
One use of a cathode ray tube is in the display screens of older televisions and computer monitors.
Step 7
Draw a sketch of an X-ray tube.
96%
114 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
A basic sketch should include:
Anode
Cathode
Target
Filament
Cooling fins
Step 8
Why are lead aprons often worn when using an X-ray tube?
99%
104 rated
Only available for registered users.
Sign up now to view full answer, or log in if you already have an account!
Answer
Lead aprons are worn to protect the body from unnecessary exposure to ionizing radiation, which can have harmful effects.
