Chisels (Junior Cert Wood Technology): Revision Notes

Chisels in Woodworking

Overview of Chisels

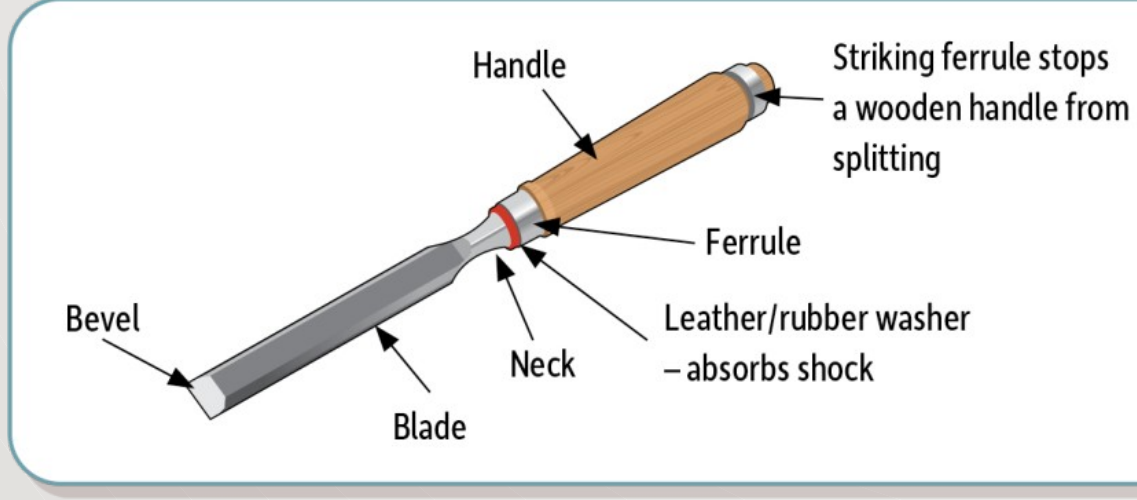

• Definition: Chisels are fundamental tools used in woodcraft for carving and shaping wood. They consist of a sharp metal blade and a handle, indispensable for creating detailed and intricate designs.
• Role in Woodcraft:
  • Crucial in producing precise and decorative designs in modern woodworking, enhancing and decorating wooden items efficiently.
  • Facilitate techniques such as chip carving and relief carving by enabling detailed and controlled cuts.

Types of Chisels

• Carver's Chisels:
  • Ideal for detail-oriented projects, they come in various shapes and sizes to accommodate different levels of carving complexity.
  • A bevel at each side of the cutting edge allows for intricate carvings.
• Bevel Edged Chisels:
  • Characterised by their bevelled edges, these chisels are instrumental in precision work.
  • Suited for both intricate detail work and general woodworking tasks.

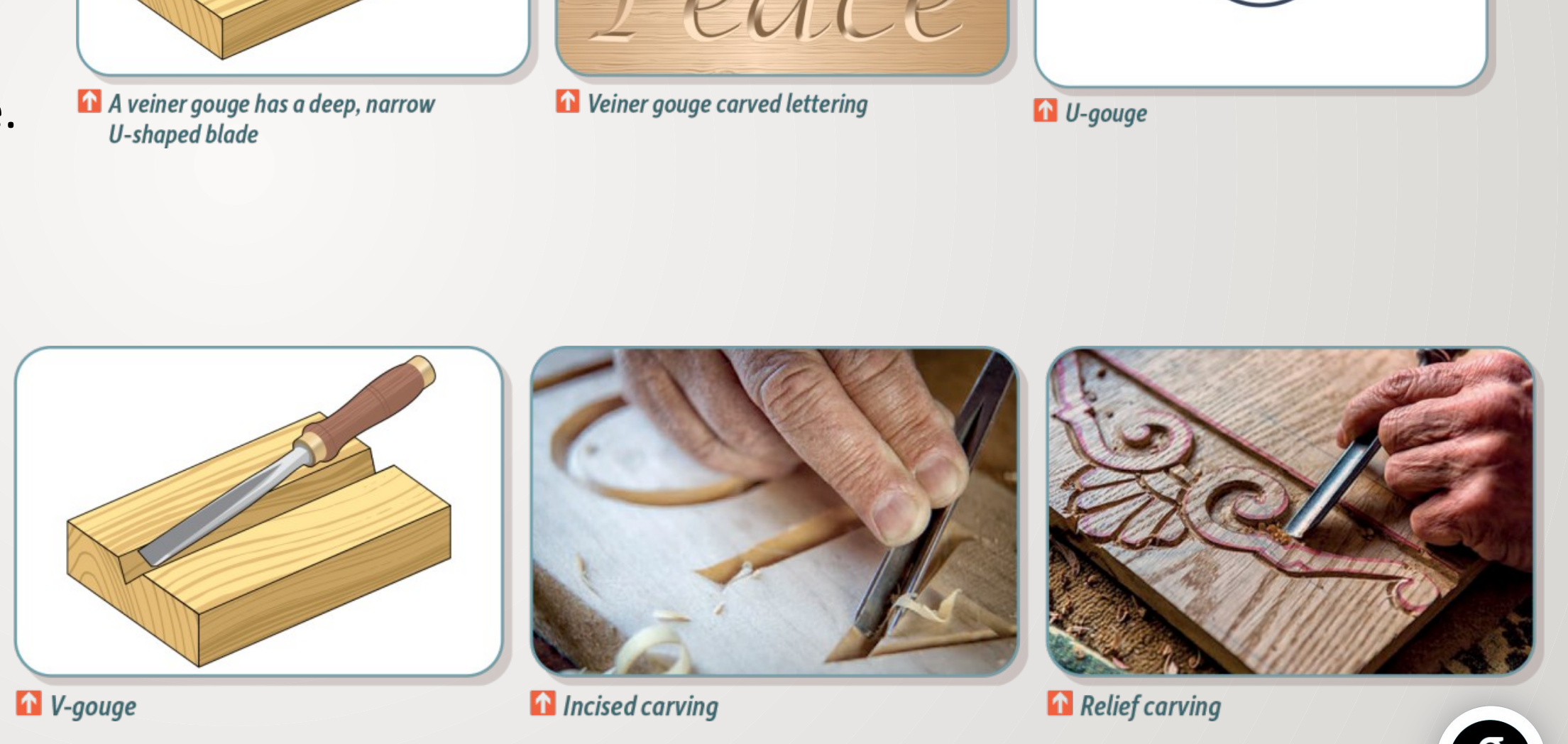

• Gouges:
  • Feature a curved design that is ideal for scooping out areas and creating smooth, rounded cuts.
  • Unique forms, such as firmer and paring gouges, are suited for specific hollowing and shaping tasks with outside or inside grinding according to needs.

Usage in Woodwork

• Chip Carving:
  infoNote

  Chisels provide a safer, more precise alternative to knives, especially in controlled tasks of complex design repetition.

  • A straightforward method of carving using chisels, especially bevel edged ones, for creating geometric patterns like triangles.
• Relief Carving:
  • Involves lowering the background around a design to make it stand out.
  • Utilises gouges for grounding the background smoothly and other chisels for outlining and detailing.
  • V-tools are important for initial outlines before gouging out the background.

Maintenance and Safety

• Keeping Chisels Sharp:
  • Essential sharpening stages include grinding and honing to create the proper bevel angle.
  • After grinding, honing refines the edge for precise cuts, ensuring longevity and effectiveness.
  • Frequent honing keeps edges sharp and well-suited for all woodworking applications.
• Safety Measures:
  chatImportant

  Always handle chisels carefully, directing the blade away from the body.

  • Ensure woodworking pieces are securely clamped.
  • Use protective equipment like gloves and safety goggles to prevent injuries.
