Wood Technology Mechanisms

• Mechanisms in wood technology turn raw wood into finished items.
• They help in moving and applying force to shape, cut, and join wood effectively.
• These mechanisms are often designed specifically for certain woodworking tasks.

Definitions

1. Mechanism
   • In wood technology, a mechanism is a set of parts that moves and controls action for tasks like cutting and shaping.
   • It helps craft wood by allowing precise control over movement and force.

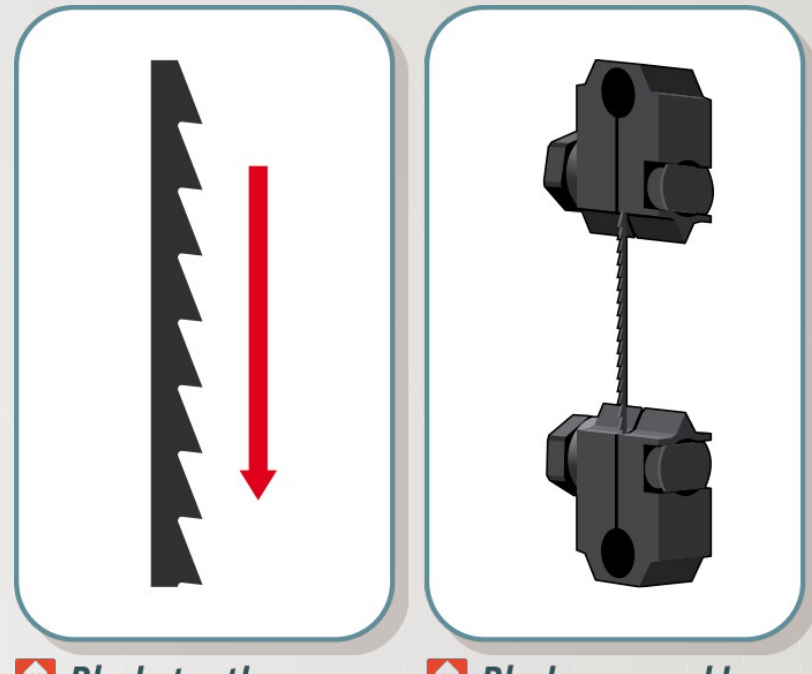

2. Pivot
   • A pivot is a point where tools turn, allowing precision and ease in tasks such as sawing.
3. Lever
   • A lever is a rigid bar that pivots to increase force, often used in tools like chisels and clamps.
4. Linkage
   • A linkage is a connected set of levers that manage motion, important in machines like adjustable saws.

Common Mechanisms in Woodworking

• Pivots: Used in sawing to make exact cuts with turning motion.
• Levers: Provide advantage in clamps and sawing rigs for cutting.
• Linkages: Found in lathes and planers for regular rotation and shaping.

Operation of Mechanisms

• Pivots: Allow tools to turn smoothly, ensuring correct cuts.
  • Useful for creating curved shapes or complex designs.
• Levers: Boost force, crucial for chisels to easily cut hard wood.
• Linkages: Allow coordinated movement, key in planers for even thickness.

Benefits and Limitations of Mechanical Aids

Pros	Cons
Increased efficiency	Maintenance needed
Enhanced precision	Requires skilled handling
Reduced manual effort	Risk of malfunction
