Mortising Machine (Junior Cert Wood Technology): Revision Notes

Mortising Machines

Overview

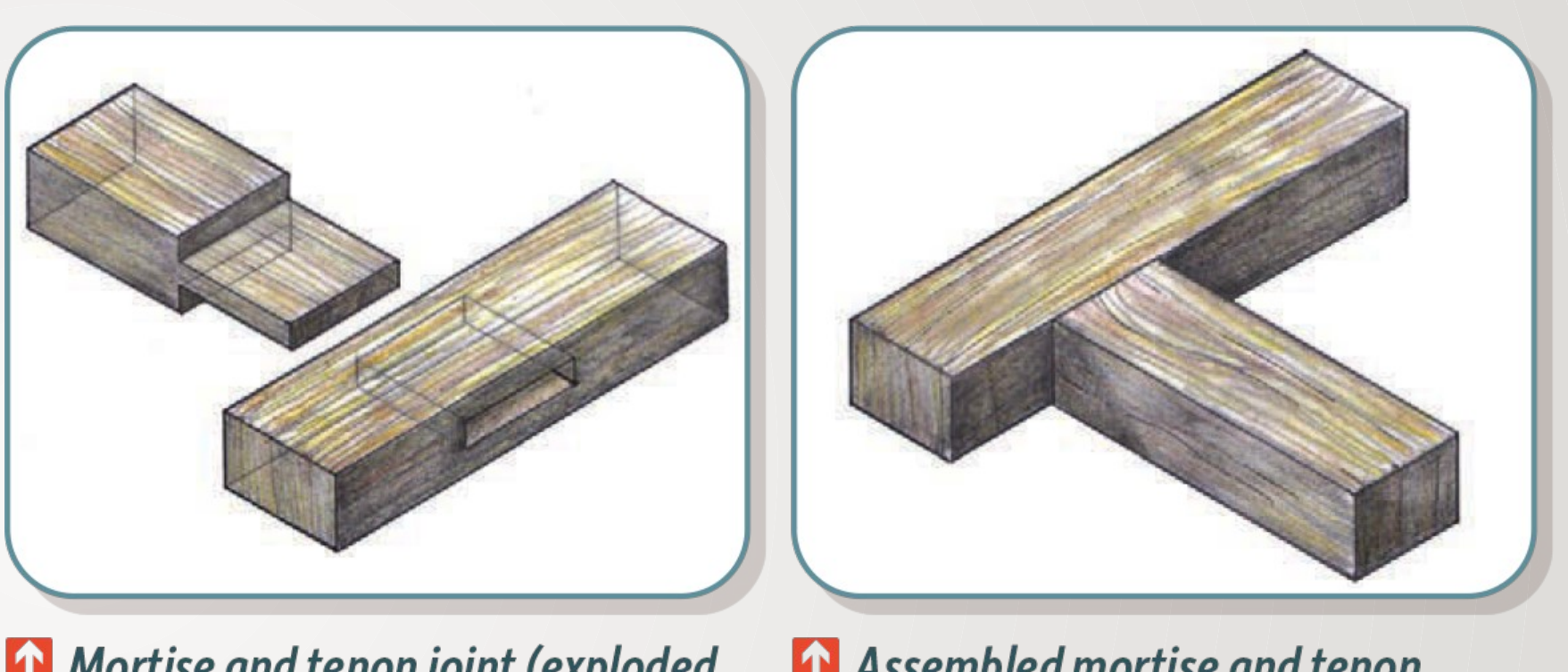

Mortising machines are tools used in woodworking to cut clean square or rectangular holes, known as mortises, into wood. These holes are essential for creating joints, especially the strong mortise-and-tenon joint, which is important for making durable woodworking structures.

Definitions

• Mortising Machine: A woodworking tool used to cut mortises for creating strong joints.

Function

• Mortising machines cut precise, straight-sided mortises in wood. Precise cuts are important for forming mortise-and-tenon joints, making woodworking projects stronger.
•

Components

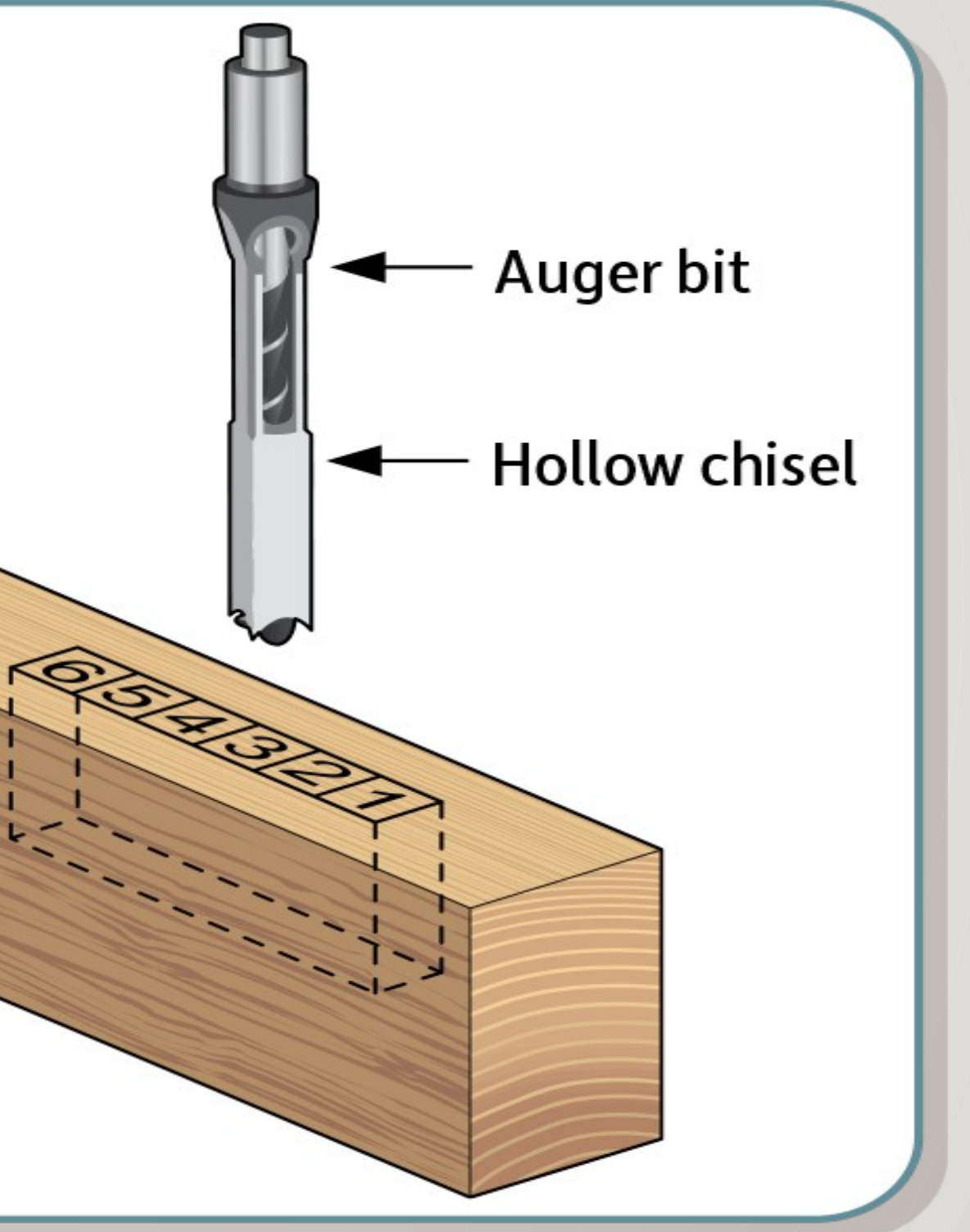

• Hollow Chisel: Has a square shape with sharp corners, used with the auger to carve mortises.
• Auger: Sits inside the hollow chisel and drills into the wood to remove material and help create mortises.
• Machine Base: Keeps the machine stable while working.
• Clamps and Guides: Hold the wood in place and ensure it lines up correctly.
•

Technique

1. Select Chisel and Auger: Pick the right size and type for your work.
2. Adjust Depth and Alignment: Set how deep the mortise should be and align the machine with the wood.
3. Position Workpiece: Secure the wood on the machine using clamps.
4. Operate Machine: Apply smooth pressure to the handle to cut the mortise.

•

Safety Practices

• Check the wood for any objects before starting.
• Maintain the machine regularly to ensure it works properly.
• Safety Checkpoints:
  • Secure the workpiece
  • Wear proper clothing
  • Perform checks before starting
  • Keep the workspace tidy
