Perspective Sketching
What is perspective sketching?
Perspective sketching is one of the most popular forms of pictorial drawing used by illustrators, designers, and architects. Unlike other drawing methods such as orthographic or isometric projections, perspective sketches create drawings that look more like what our eyes actually see or what a camera records.
The key difference is that perspective drawings show how parallel lines appear to converge at specific points called vanishing points, creating a realistic sense of depth and distance. This makes objects appear smaller as they get further away, just like in real life.
Perspective sketching bridges the gap between technical drawing and artistic representation, making it an essential skill for visual communication in design fields.
Types of perspective

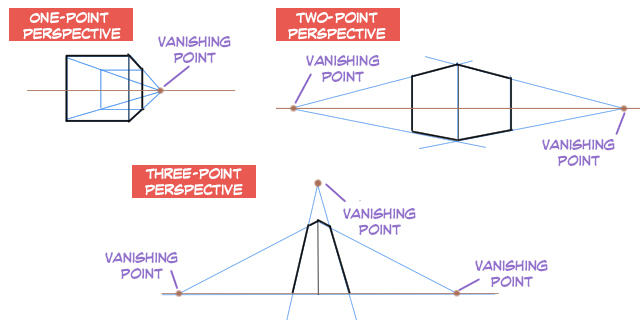

There are three main types of perspective sketching, each determined by the number of vanishing points used. Understanding these different approaches will help you choose the right method for your drawing.
One-point perspective
In one-point perspective, all parallel lines that move away from the viewer converge to a single vanishing point on the horizon line. This type works best when viewing objects straight-on, where one face is parallel to the picture plane. It's the simplest form of perspective and creates a strong sense of depth moving directly away from the viewer.
Two-point perspective
Two-point perspective uses two vanishing points positioned on the horizon line. This creates a more dynamic view where objects appear to recede in two directions. It's commonly used when viewing objects from a corner angle, making the drawing appear more three-dimensional and realistic.
Three-point perspective
Three-point perspective adds a third vanishing point either above or below the horizon line. This creates dramatic views looking up at tall objects (like buildings from ground level) or down from great heights (like a bird's eye view). The third vanishing point adds vertical convergence to the drawing, making it particularly effective for architectural subjects.
Key rules for perspective sketching
Fundamental Perspective Rules
Understanding these fundamental rules will help you create accurate and convincing perspective sketches:
-
Horizontal lines vanish to vanishing points on the horizon - Any line that runs horizontally in real space will appear to converge towards a vanishing point positioned on the horizon line
-
Parallel lines vanish to the same vanishing point - Lines that are parallel to each other in real space will all converge towards the same vanishing point in your perspective drawing
-
Distance affects apparent size - Objects and edges that appear behind the picture plane will look shorter than their true length, while those positioned in front of the picture plane will appear longer than their actual size
These rules help create the illusion of depth and make your drawings look three-dimensional and realistic.
Creating perspective sketches
When starting a perspective sketch, your first step should be to establish the major points and construction lines. Begin by locating where the object sits in relation to the horizon line, then work systematically towards the finer details.
The process involves breaking down complex objects into simpler geometric forms first, then building up the detail once the basic perspective framework is established. This approach prevents errors and helps maintain consistent perspective throughout your drawing.
Worked examples
Worked Example: Drawing Curved Objects in Perspective
Common objects like cylinders and cones demonstrate how perspective principles apply to curved forms as well as straight edges. These basic shapes form the foundation for more complex mechanical and architectural drawings.
Key Point: Understanding how circular forms appear as ellipses when viewed in perspective is essential. The proportions of these ellipses change depending on their position relative to the horizon line:
- Objects closer to eye level appear as flatter ellipses
- Objects further from the horizon line appear as rounder ellipses
Key Points to Remember:
- Perspective sketching creates more realistic drawings than orthographic or isometric projections
- The three types are one-point, two-point, and three-point perspective, each using different numbers of vanishing points
- Horizontal lines always converge towards vanishing points on the horizon line
- Parallel lines in real space share the same vanishing point in perspective drawings
- Start with basic construction lines and major reference points before adding fine details
