Maps, Directions, Seating Plans, and Floor Plans

Understanding how to read and use various types of plans is an essential skill in daily life. Whether you need to navigate a shopping centre, find your seat in a cinema, or describe your location to someone, being able to interpret maps and plans accurately will help you communicate spatial information effectively.

What are plans and maps?

infoNote

Plans are detailed drawings that show the layout of buildings, rooms, or areas from a bird's-eye view. They help us understand the arrangement and relationship between different spaces and objects.

Maps are representations of larger areas that show the location of places, roads, and landmarks. Both plans and maps use scales to represent real distances in a smaller, manageable format.

Types of plans you'll encounter

Classroom seating plans

These show the arrangement of desks, furniture, and facilities within a classroom. They help with navigation and understanding spatial relationships between students and classroom features.

School ground plans

These display the layout of school buildings, sports fields, and facilities across the entire school property. They often include multiple buildings and outdoor areas.

Cinema seating plans

These show seat availability and help customers choose optimal viewing positions. They typically use colour coding to indicate available, booked, or special seating areas.

Stadium seating plans

These display different seating sections with various pricing categories and help visitors navigate to their designated areas.

Shopping centre floor plans

These show store locations, facilities, and navigation routes through multi-level retail spaces.

Understanding scales

chatImportant

Scale is the relationship between distances on a plan and real distances in the actual space. This is the most important concept you need to master when working with plans and maps.

Number scales

A number scale like $1:50$ means that $1$ unit on the plan represents $50$ of the same units in reality.

For example: If a classroom measures $10.5$ cm wide on a plan with scale $1:50$ , the real width is:

Real measurement = Plan measurement × Scale factor
Real width = $10.5 \text{ cm} \times 50 = 525 \text{ cm} = 5.25 \text{ m}$

Bar scales

A bar scale provides a visual ruler showing actual distances. It typically shows segments representing different measurements (like $0$ m, $10$ m, $20$ m).

infoNote

To use a bar scale, measure the distance on the plan with a ruler, then compare it to the bar scale to find the real distance. This method is particularly useful when you don't have a specific number scale ratio.

Reading and giving directions

When navigating using plans, use clear directional language:

Spatial relationships: left, right, in front of, behind, next to, opposite
Movement instructions: walk straight, turn left/right, go past, stop at
Reference points: use landmarks like doors, windows, or specific facilities

infoNote

Direction Tips:

Always give directions from the person's perspective, not your own
Use specific landmarks as reference points
Be clear about turns and distances
Test your directions by walking through them mentally

Example direction sequence:

"Walk through the door and turn right before desk B. Walk straight down the aisle passing desks E and H on the left. At desk K (behind desk H) turn around to face the blackboard and sit down."

Common map symbols

Maps and plans use universal symbols to represent facilities and features. These symbols help you quickly identify:

Lifts/Elevators: for moving between floors
Escalators: moving stairs
Regular stairs: fixed steps
Toilets: restroom facilities
Restaurants: food services
Disabled access: wheelchair accessibility

Worked examples

lightbulbExample

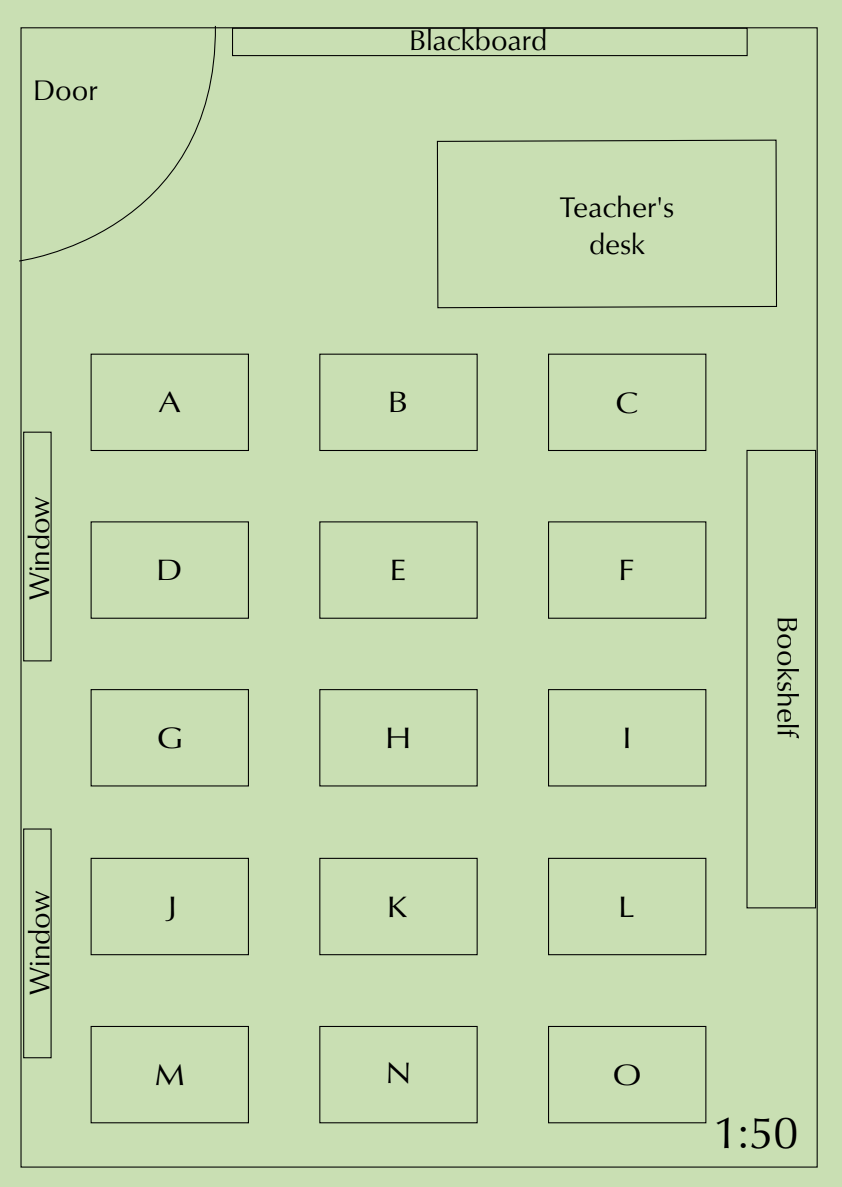

Worked Example 1: Classroom scale calculations

Using the classroom plan with scale $1:50$ :

Step 1: Measure the classroom width on the plan = $10.5$ cm

Step 2: Apply the scale formula = $10.5 \text{ cm} \times 50 = 525 \text{ cm}$

Step 3: Convert to metres = $525 \text{ cm} \div 100 = 5.25 \text{ m}$

Step 4: For the length measurement = $15 \text{ cm} \times 50 = 750 \text{ cm} = 7.5 \text{ m}$

lightbulbExample

Worked Example 2: Cinema seating analysis

When analyzing cinema seating:

Blue squares = Available seats
Red squares = Booked seats
Pink squares = Unavailable seats
Purple squares = Wheelchair accessible seats

To calculate the percentage of theatre still available:

Step 1: Count total seats and available seats

Step 2: Use formula: $\text{Percentage} = \frac{\text{Available seats}}{\text{Total seats}} \times 100$

Step 3: Example: $\frac{211}{234} \times 100 = 90.17% \approx 90%$

lightbulbExample

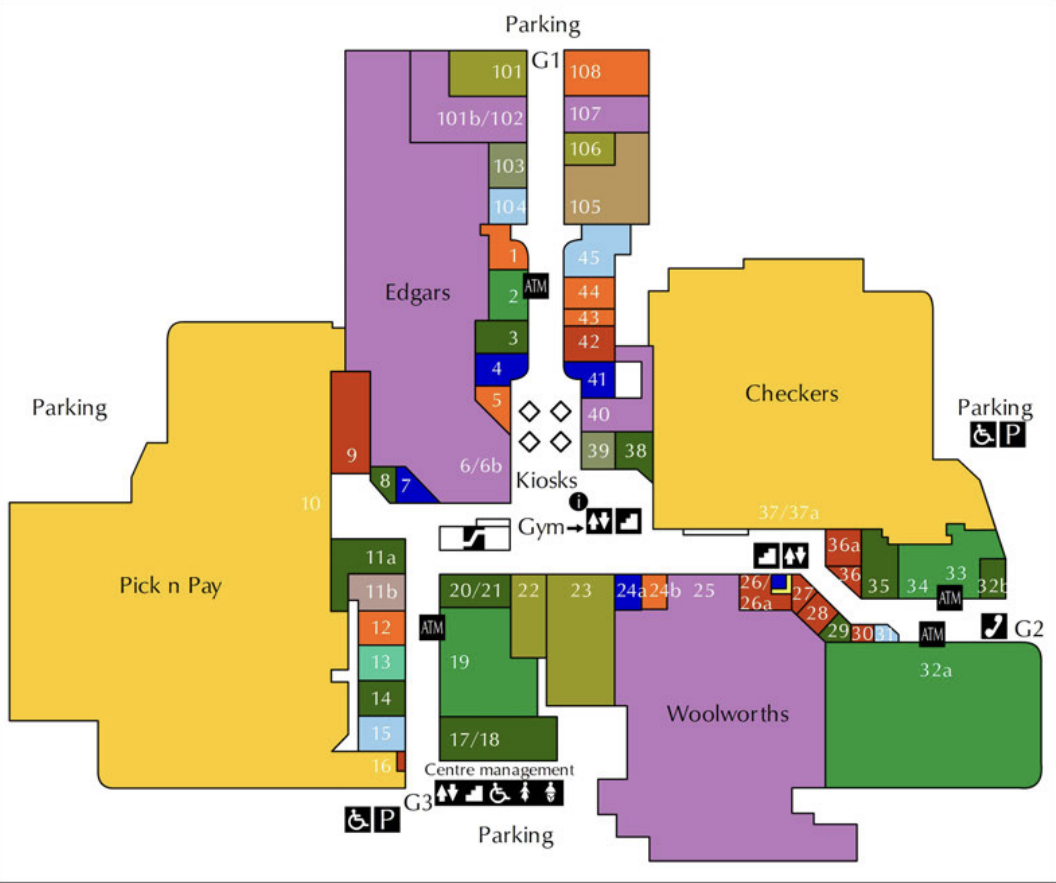

Worked Example 3: Shopping centre navigation

When giving directions in a shopping centre:

Step 1: Identify your starting point (entrance)

Step 2: Locate your destination (specific shop)

Step 3: Plan the most efficient route

Step 4: Use landmarks and clear directional language

Example: "From entrance G3, go straight past shops 15, 14, 13, 12. At shop 20/21, turn right before the escalators. Keep going straight past Woolworths, and past the stairs and elevators on your left. The ATM will be on your right, just before the public phones."

lightbulbExample

Worked Example 4: School ground measurements

Using the bar scale to measure the sports field:

Step 1: Measure the field width on the plan using a ruler

Step 2: Compare this measurement to the bar scale

Step 3: Read the corresponding real distance from the scale

Step 4: Repeat for length measurements

lightbulbExample

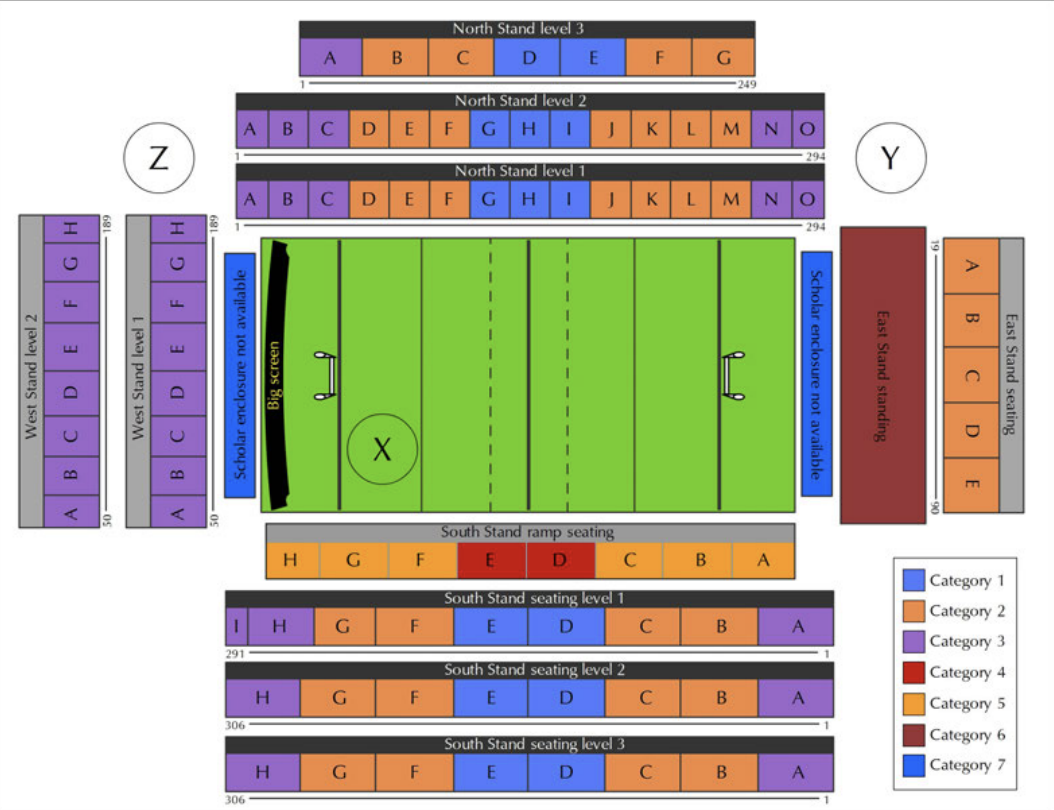

Worked Example 5: Stadium seating categories

Stadium plans typically show:

Different pricing categories (usually 7 categories)
Stand locations (North, South, East, West)
Section numbers and levels
Access points and facilities

To locate your seat: Find your stand → Find your level → Find your section → Find your seat number.

Exam tips and common traps

Scale calculations:

Always multiply the plan measurement by the scale factor
Remember to convert units (cm to m) when necessary
Double-check your calculations

Direction giving:

Use the person's perspective, not your own
Include clear reference points
Be specific about turns and distances

Reading plans:

Check the legend or key for symbol meanings
Note the scale before making any measurements
Consider multiple floors or levels in complex buildings

chatImportant

Common mistakes to avoid:

Dividing instead of multiplying for scale calculations
Giving directions from the wrong perspective
Misreading colour-coded information
Forgetting to convert units (cm to m)
Not checking the legend or key for symbol meanings

bookmarkSummary

Key Points to Remember:

Scale $1:50$ means $1$ cm on the plan equals $50$ cm in reality - always multiply by the scale factor
Use clear directional language with reference points when giving directions
Map symbols are universal - learn the common ones for lifts, stairs, toilets, and accessibility
Colour coding in seating plans typically shows availability, pricing, or special features
Always check the legend or key to understand what different colours and symbols represent
The formula for scale calculations is: Real measurement = Plan measurement × Scale factor
