What are map sheet references?

A map sheet reference acts as the title or name of a topographical map. This reference system helps us identify exactly which area of South Africa a particular map covers and connects it to all other South African maps in a systematic way.

infoNote

Think of map sheet references as a postal address system for maps - each reference tells you precisely where that map fits within the larger mapping system of the country.

Understanding the components

Every map sheet reference contains both numbers and letters that have specific meanings. Let's examine the example 3318CD to understand how this system works.

The numbers (3318)

The four numbers in a map sheet reference indicate where lines of latitude and longitude intersect:

The first two numbers (33) represent the latitude line
The last two numbers (18) represent the longitude line
This creates a specific intersection point that helps locate the map area

The letters (CD)

The letters refer to how the area is divided into manageable sections called blocks:

The area within the latitude and longitude lines is split into four large squares
These are called big blocks and are labelled A, B, C, and D
Each big block is then subdivided into four smaller squares
These are called small blocks and are also labelled A, B, C, and D

lightbulbExample

Worked Example: Decoding 3318CD

Let's break down the reference 3318CD step by step:

Step 1: Identify the coordinates

33 = latitude line (33°)
18 = longitude line (18°)

Step 2: Identify the block divisions

C = big block C within the coordinate area
D = small block D within big block C

Result: This map covers small block D of big block C at the intersection of 33° latitude and 18° longitude.

How the grid system works

The South African mapping system uses a clever grid arrangement that makes it easy to locate adjacent maps. Here's how it functions:

infoNote

When you look at any map area, you'll see it divided into sections following this pattern:

Four big blocks arranged in a 2×2 grid (A, B, C, D)
Each big block contains four small blocks, also in a 2×2 arrangement (A, B, C, D)

This creates a systematic way to reference any specific area within the larger geographical region.

Finding adjacent map sheet references

One of the most important skills in mapwork is determining the map sheet references for areas adjacent to a given reference. Let's work through how this process works using practical examples.

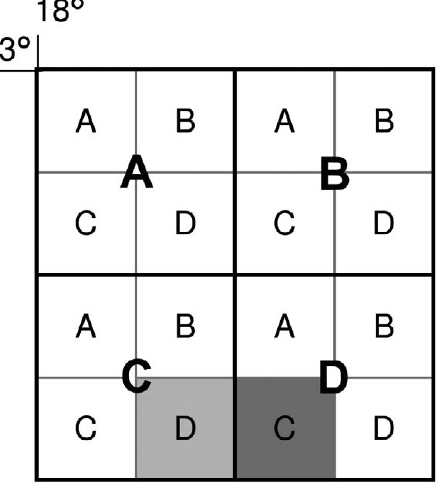

Moving east from 3318CD

When you need to find the map sheet reference to the east of 3318CD:

The block to the east falls within the same latitude and longitude area
So the numbers (3318) remain the same
However, it moves into big block D
Therefore, the reference becomes 3318DC

Moving in different directions

chatImportant

Essential Rules for Finding Adjacent Map References:

Moving North: If you go north (up) out of a big block, the latitude must decrease by 1°

Moving South: If you go south (down) out of a big block, the latitude must increase by 1°

Moving East: If you go east (right) out of a big block, the longitude must increase by 1°

Moving West: If you go west (left) out of a big block, the longitude must decrease by 1°

lightbulbExample

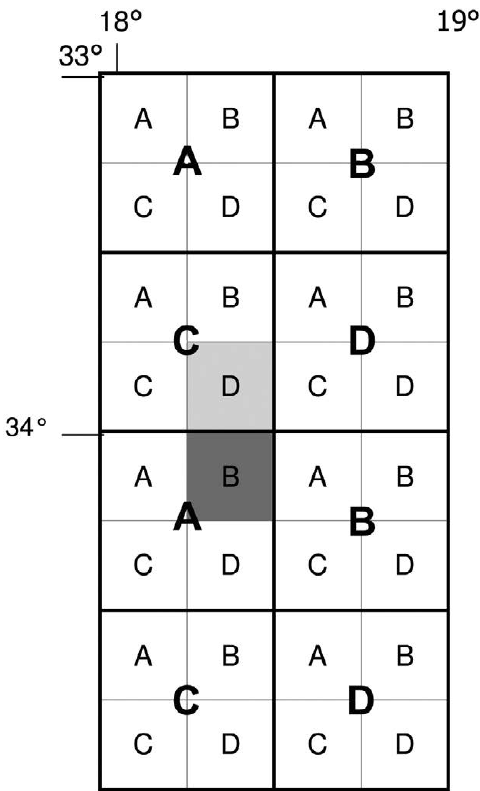

Worked Example: Moving South from 3318CD

Let's trace through finding the reference south of 3318CD:

Step 1: Determine coordinate changes

Moving south takes us out of the 33° latitude area
Latitude increases by 1°: 33° → 34°
Longitude stays the same: 18°

Step 2: Determine new block position

We enter big block A in the new coordinate area
We're moving to small block B within that big block

Step 3: Write the new reference

New coordinates: 34 and 18
New blocks: A and B
Final answer: 3418AB

Common exam question types

The NSC Geography exam typically includes two main types of questions about map sheet references:

infoNote

Type 1: Direct identification "What is the map sheet reference of the map?"

Look at the top of the map or front page to find this information
It will be clearly displayed as the map's title

Type 2: Adjacent reference calculation
"Name the map sheet reference in any direction from the given map sheet reference"

Use the coordinate change rules explained above
Work systematically through the latitude and longitude changes
Remember to adjust the block letters appropriately

Exam tips and strategies

When answering map sheet reference questions in exams, these strategies will help ensure success:

chatImportant

Critical Exam Success Tips:

Always check your coordinate logic: Make sure latitude and longitude changes follow the correct direction rules
Double-check block positions: Ensure you understand whether you're moving between big blocks or into entirely new coordinate areas
Practice with different examples: The more you work with various starting positions, the more confident you'll become
Look for grid references on exam maps: Many topographical maps include small grid references at the bottom that can help verify your answers
Remember the latitude rule: Latitude (N or S) is always written first in coordinates

bookmarkSummary

Key Points to Remember:

Map sheet references serve as unique identifiers that connect individual maps to the broader South African mapping system
The four numbers represent latitude and longitude intersections, while letters indicate block divisions within those areas
When moving between adjacent maps, latitude decreases going north and increases going south, while longitude increases going east and decreases going west
Big blocks and small blocks both use the same A, B, C, D labelling system in a 2×2 arrangement
Exam success requires understanding both direct identification of references and systematic calculation of adjacent references using coordinate change rules
