Equation of a Tangent to a Curve Revision Notes for Grade 12 NSC Matric Mathematics

Equation of a Tangent to a Curve

Understanding tangents and curves

A tangent line is a straight line that touches a curve at exactly one point. At this point of contact, the tangent has the same gradient (slope) as the curve itself. This is a fundamental concept in differential calculus that connects derivatives to geometry.

The derivative of a function gives us the gradient of the curve at any point. When we evaluate the derivative at a specific point, we get the exact gradient of both the curve and its tangent line at that point.

infoNote

The beauty of calculus is that it provides a precise mathematical tool to find the slope of a curve at any point, even when the curve is continuously changing direction.

Key relationship: gradient connection

At any given point on a curve, the gradient of the curve equals the gradient of the tangent to the curve at that point. This fundamental relationship bridges the gap between algebraic derivatives and geometric tangent lines.

chatImportant

Key Formula: At a given point on a curve, the gradient of the curve is equal to the gradient of the tangent to the curve.

Gradient of tangent = $f'(x)$ evaluated at the point

The derivative (or gradient function) describes the gradient of a curve at any point on the curve.

Step-by-step method for finding tangent equations

To find the equation of a tangent line to a curve, we follow a systematic approach that ensures accuracy and clarity.

infoNote

4-Step Method for Tangent Equations:

Find the derivative using differentiation rules
Calculate the gradient by substituting the x-coordinate of the given point into the derivative
Apply the point-gradient form using the gradient and coordinates: $y - y_1 = m(x - x_1)$
Simplify to get the final equation in the form $y = mx + c$

This method works for any differentiable curve and provides a consistent approach to tangent problems.

Normal lines and perpendicular relationships

A normal line is perpendicular to the tangent line at the point of contact. Understanding this relationship is crucial for solving more complex geometric problems.

The gradients of perpendicular lines have a special mathematical relationship that we can use to find normal lines quickly:

chatImportant

Perpendicular Gradient Relationship:

$m_{\text{tangent}} \times m_{\text{normal}} = -1$

This means: $m_{\text{normal}} = -\frac{1}{m_{\text{tangent}}}$

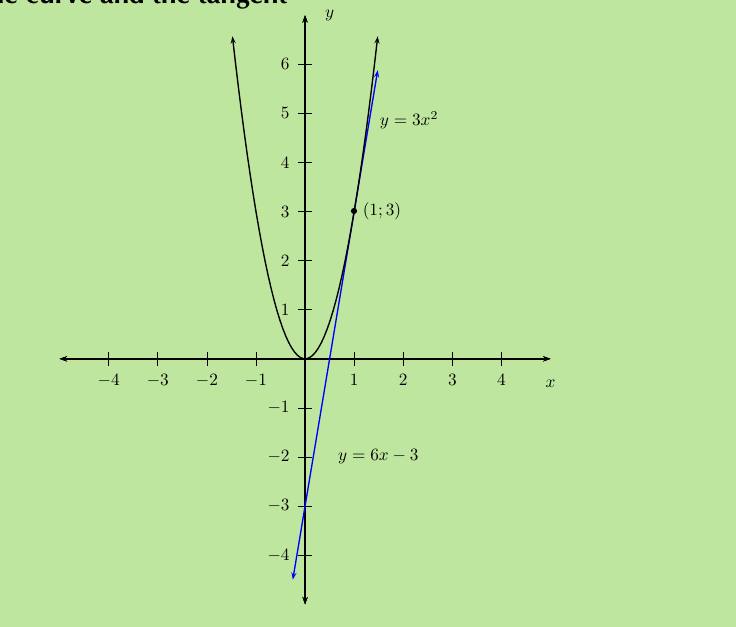

Worked example 1: Basic tangent equation

lightbulbExample

Worked Example: Finding a Basic Tangent

Question: Find the equation of the tangent to the curve $y = 3x^2$ at the point $(1, 3)$ .

Solution:

Step 1: Find the derivative

$y = 3x^2$
$\frac{dy}{dx} = 3(2x) = 6x$

Step 2: Calculate the gradient of the tangent

At point $(1, 3)$ , substitute $x = 1$ :

$\frac{dy}{dx} = 6x = 6(1) = 6$

Therefore, $m = 6$

Step 3: Apply point-gradient form

Using $y - y_1 = m(x - x_1)$ with point $(1, 3)$ and $m = 6$ :

$y - 3 = 6(x - 1)$
$y - 3 = 6x - 6$
$y = 6x - 3$

Answer: The equation of the tangent is $y = 6x - 3$

Worked example 2: More complex function

lightbulbExample

Worked Example: Complex Function with Product Rule

Question: Given $g(x) = (x + 2)(2x + 1)^2$ , determine the equation of the tangent to the curve at $x = -1$ .

Solution:

Step 1: Find the y-coordinate

$g(x) = (x + 2)(2x + 1)^2$
$g(-1) = (-1 + 2)(2(-1) + 1)^2 = (1)(-1)^2 = 1$

Point is $(-1, 1)$

Step 2: Expand the function

$g(x) = (x + 2)(2x + 1)^2 = (x + 2)(4x^2 + 4x + 1)$
$= 4x^3 + 4x^2 + x + 8x^2 + 8x + 2$
$= 4x^3 + 12x^2 + 9x + 2$

Step 3: Find the derivative

$g'(x) = 4(3x^2) + 12(2x) + 9 = 12x^2 + 24x + 9$

Step 4: Calculate the gradient

$g'(-1) = 12(-1)^2 + 24(-1) + 9 = 12 - 24 + 9 = -3$

Step 5: Apply point-gradient form

$y - 1 = -3(x - (-1))$
$y - 1 = -3(x + 1)$
$y = -3x - 3 + 1$
$y = -3x - 2$

Answer: The equation of the tangent is $y = -3x - 2$

Worked example 3: Finding a normal line

lightbulbExample

Worked Example: Finding a Normal Line

Question: Determine the equation of the normal to the curve $xy = -4$ at $(-1, 4)$ .

Solution:

Step 1: Find the derivative

$xy = -4$ , so $y = -\frac{4}{x} = -4x^{-1}$
$\frac{dy}{dx} = -4(-1)x^{-2} = 4x^{-2} = \frac{4}{x^2}$

Step 2: Find the gradient of the tangent

At $x = -1$ : $\frac{dy}{dx} = \frac{4}{(-1)^2} = \frac{4}{1} = 4$

Step 3: Find the gradient of the normal

Since $m_{\text{tangent}} \times m_{\text{normal}} = -1$ :

$4 \times m_{\text{normal}} = -1$
$m_{\text{normal}} = -\frac{1}{4}$

Step 4: Apply point-gradient form for the normal

$y - 4 = -\frac{1}{4}(x - (-1))$
$y - 4 = -\frac{1}{4}(x + 1)$
$y = -\frac{1}{4}x - \frac{1}{4} + 4$
$y = -\frac{1}{4}x + \frac{15}{4}$

Answer: The equation of the normal is $y = -\frac{1}{4}x + \frac{15}{4}$

Common exam tips

Understanding common pitfalls and following best practices will help you avoid mistakes and solve problems efficiently.

infoNote

Essential Exam Tips:

Always check your point: Substitute the given x-value into the original function to find the y-coordinate
Simplify before differentiating: Expand brackets and rewrite expressions in standard form when possible
Double-check perpendicular gradients: Remember that $m_1 \times m_2 = -1$ for perpendicular lines
Use correct notation: Write $\frac{dy}{dx}$ clearly and show all substitution steps
Verify your answer: Check that your tangent line passes through the given point

chatImportant

Common Mistakes to Avoid:

Forgetting to find the y-coordinate when only x is given
Using the wrong gradient for normal lines (remember the reciprocal rule)
Arithmetic errors when expanding brackets or simplifying expressions
Not showing intermediate steps clearly in exam solutions

Summary

bookmarkSummary

Key Points to Remember:

The derivative at a point gives the gradient of the tangent at that point
Tangent lines touch the curve at exactly one point and have the same gradient as the curve there
Normal lines are perpendicular to tangent lines with gradients related by $m_{\text{tangent}} \times m_{\text{normal}} = -1$
Always use the point-gradient form $y - y_1 = m(x - x_1)$ to write the final equation
Expand and simplify functions first before differentiating to avoid errors

Essential Formulas:

Point-gradient form: $y - y_1 = m(x - x_1)$
Perpendicular gradients: $m_{\text{tangent}} \times m_{\text{normal}} = -1$
Normal gradient: $m_{\text{normal}} = -\frac{1}{m_{\text{tangent}}}$
