Logical operators

What are logical operators?

Logical operators are special symbols that help programmers make decisions by combining different conditions together. Think of them like the words "and", "or", and "not" that we use in everyday speech to connect ideas. In programming, these operators work with Boolean values (true or false) to help your programme decide what to do next.

When you use logical operators with relational operators (like >, <, ==), you can create more complex conditions that make your programmes much smarter and more flexible.

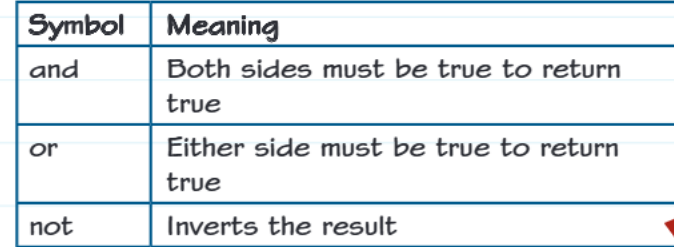

The three main logical operators

Let's look at each logical operator and understand how they work:

The 'and' operator

The and operator is like saying "both things must be true". It only returns True when both sides of the condition are true. If even one side is false, the whole thing becomes false.

lightbulbExample

Example: Age and License Check

(age >= 18) and (hasLicense == True)

This only returns True if the person is 18 or older AND they have a license
If they're 20 but don't have a license, it returns False
If they have a license but are only 16, it returns False

The 'or' operator

The or operator is more flexible - it means "at least one thing must be true". It returns True when either side (or both sides) of the condition is true. It only returns False when both sides are false.

lightbulbExample

Example: Weekend Day Check

(day == "Saturday") or (day == "Sunday")

This returns True if it's either Saturday OR Sunday (or somehow both!)
It only returns False if it's a weekday

The 'not' operator

The not operator is like flipping a switch - it inverts (reverses) the result. If something is True, not makes it False. If something is False, not makes it True.

lightbulbExample

Example: Game Status Check

not (gameOver == True)

If the game is over (gameOver is True), this returns False
If the game is still going (gameOver is False), this returns True

Understanding Boolean data types

When you use logical operators, you're working with Boolean data types. This means your conditions can only have two possible values: True or False.

infoNote

How Boolean Evaluation Works:

Here's how it works step by step:

Each condition on either side of the logical operator gets evaluated first
The computer figures out if each part is True or False
Then the logical operator combines these results
Finally, you get one single True or False answer

Important note: The and and or operators need something on both sides to compare. The not operator only needs one thing to flip around.

Using logical operators in your programmes

Logical operators are super useful when working with selection statements (like if...elif...else) and repetition loops (like while). They help you create more sophisticated conditions that can handle multiple scenarios at once.

lightbulbExample

Practical Example: All Three Operators in Action

roll = 7
guess = -2
total = 0
count = 4
statElectricity = False
statWater = True

# Using 'or' operator
if ((roll > 6) or (guess < 1)):
    print("Invalid")

# Using 'and' operator
if ((statWater == True) and (statElectricity == False)):
    print("Safe to enter")

# Using 'not' operator
statElectricity = True
if ((statWater) and (not statElectricity)):
    print("Safe to enter")
else:
    print("Stay out")

# Using 'not' in a while loop
while (not (total >= 4)):
    total = total + 1
    print(total)

Exam tips and common mistakes

chatImportant

Remember these key points:

and needs ALL conditions to be true
or needs AT LEAST ONE condition to be true
not flips the result (true becomes false, false becomes true)
Always use brackets to make your conditions clear: ((age >= 18) and (hasTicket == True))
Test your logical conditions with different values to make sure they work correctly

Common pitfall: Don't confuse and with or! Many students mix these up in exam questions. Remember: and is stricter (needs everything), or is more flexible (needs anything).

Remember!

bookmarkSummary

Key Points to Remember:

Logical operators combine Boolean conditions to make complex decisions in your programmes
and operator requires both sides to be true - it's like saying "this AND that must both happen"
or operator requires at least one side to be true - it's like saying "this OR that (or both) must happen"
not operator flips the result - it turns true into false and false into true
These operators are essential for creating smart selection and repetition structures in your code
