Logic Gates (Junior Cert Applied Technology): Revision Notes
Logic Gates
Overview of Logic Gates
Logic gates are key parts of digital circuits. They perform operations based on Boolean functions, using binary inputs (0s and 1s) to create a single binary output.
- Logic Gate: A device doing logical operations to give outputs from binary inputs.
- Boolean Logic: A type of algebra using binary values, essential for digital computing, where values are TRUE or FALSE (1 or 0).
Remember: Digital computing heavily relies on Boolean logic, making it fundamental to understanding any digital circuit.
Introduction to Logic Gates
Logic gates form the foundation of digital electronics. They offer a simple way to process information using true/false or on/off states. This enables converting digital input into useful output in systems.
Overview of Different Types of Logic Gates
Logic gates come in different types, each serving a specific role:
- AND Gate: Outputs true only when all inputs are true.
- OR Gate: Outputs true if at least one input is true.
- NOT Gate: Reverses the input.
- NAND Gate: Produces a false output only when all inputs are true.
- NOR Gate: Outputs true only when all inputs are false.
- XOR Gate: Gives a true output if exactly one input is true.
- XNOR Gate: Outputs true when inputs are equal.
Become familiar with all types of logic gates since each plays a crucial role in complex digital circuits.
Logic Gates in Control Systems
Logic gates are crucial in control systems. They help make decisions based on inputs to keep operations smooth. They are used in systems like monorails, where inputs from switches guide actions using logic gates.
- Control System: Mechanisms that regulate devices via control loops, crucial for reliable operation.
When designing control systems, ensure that logic gates process inputs correctly to maintain operational safety and reliability.

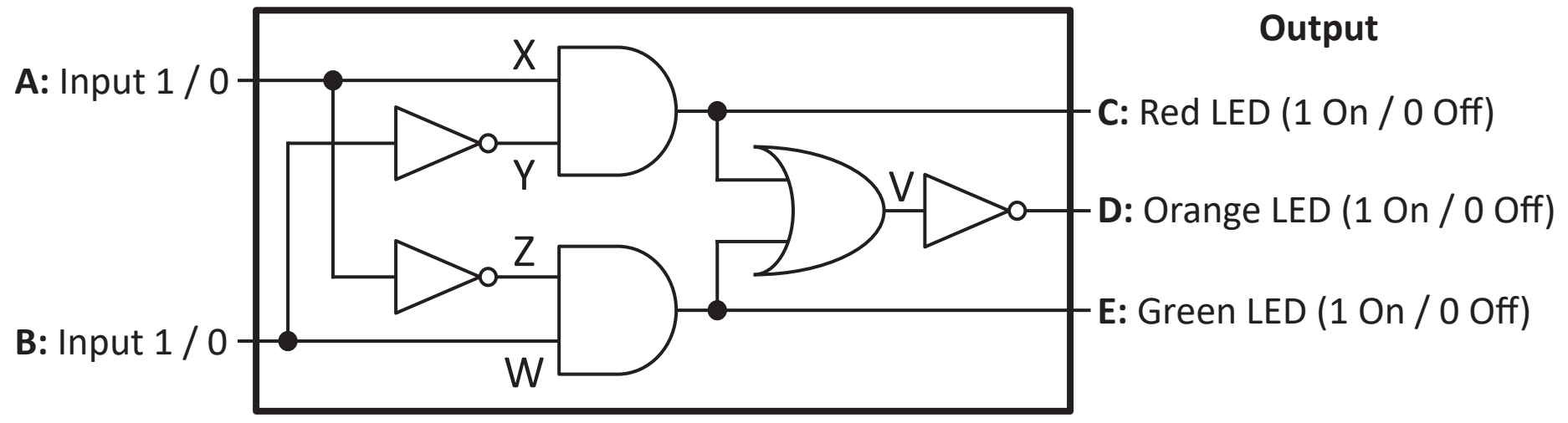

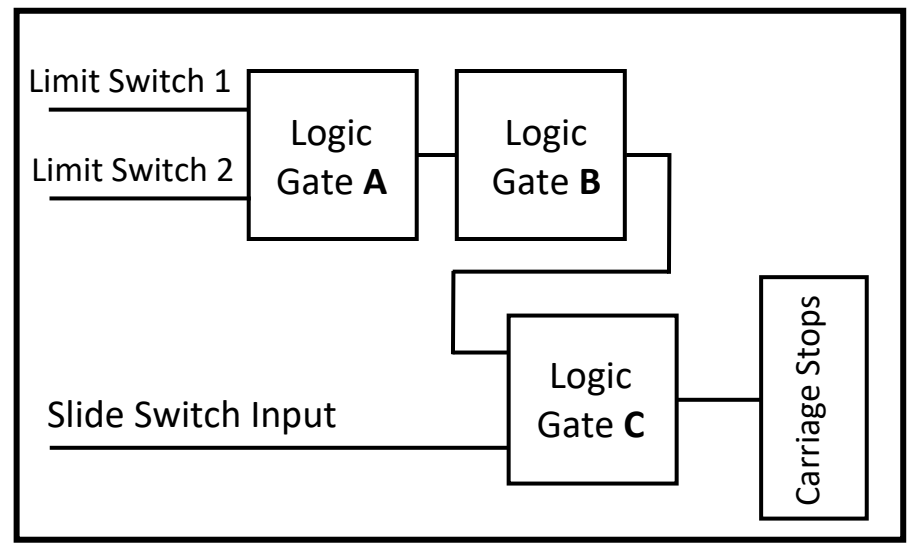

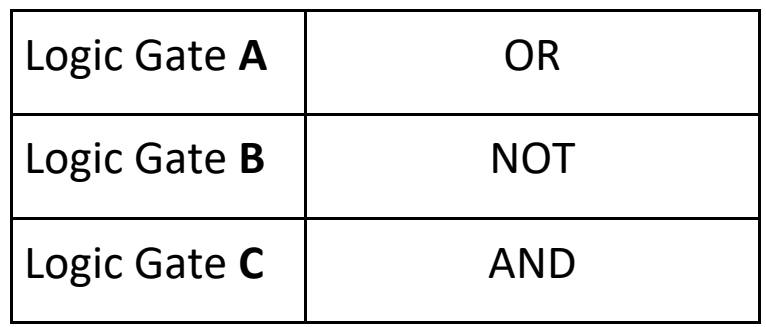

Practical Application: Monorail System Control
Students can apply logic gate knowledge by designing circuits:
- Example: Use an AND gate in a circuit to operate a monorail system, ensuring it moves only when both a slide switch and a limit switch are active (inputs of 1).
Construction of Truth Tables
Truth tables are valuable for understanding logic gate operations. They show possible input combinations and outputs, crucial for control systems:
- Instruction: Create truth tables for each gate type (AND, OR, NOT) to grasp their logic and use them in designs.
Summary
- Logic gates are core in digital systems, using Boolean logic.
- Key types include AND, OR, and NOT, each with distinct symbols and truth tables.
- They are crucial in systems like monorail controls.
- Knowing how to make and read truth tables is essential for using logic gates in control systems.
