Congruent Shapes (Edexcel GCSE Maths): Revision Notes
Congruent shapes
What does congruent mean?
When we say two shapes are congruent, we mean they are exactly the same in both size and shape. Think of congruence as mathematical twins - the shapes are identical copies of each other. The word "congruent" might sound complicated, but the concept is straightforward: if you could pick up one shape and place it perfectly over another shape with no gaps or overlaps, then those shapes are congruent.
Congruent shapes can be moved around through reflexion (flipping) or rotation (turning), but they must maintain their exact size and shape. This means that even if one triangle is upside down compared to another, they can still be congruent as long as all their measurements match up perfectly.
Understanding triangle congruence
Triangles are special in geometry because we don't need to check every single measurement to prove they're congruent. Instead, mathematicians have identified four specific conditions that, when met, guarantee that two triangles are congruent. If you can prove that one of these four conditions is true, then you've successfully proven the triangles are identical.
This is incredibly useful because it saves time and makes proofs much more manageable. Rather than measuring every angle and every side, you only need to focus on the specific measurements required by one of the four conditions.

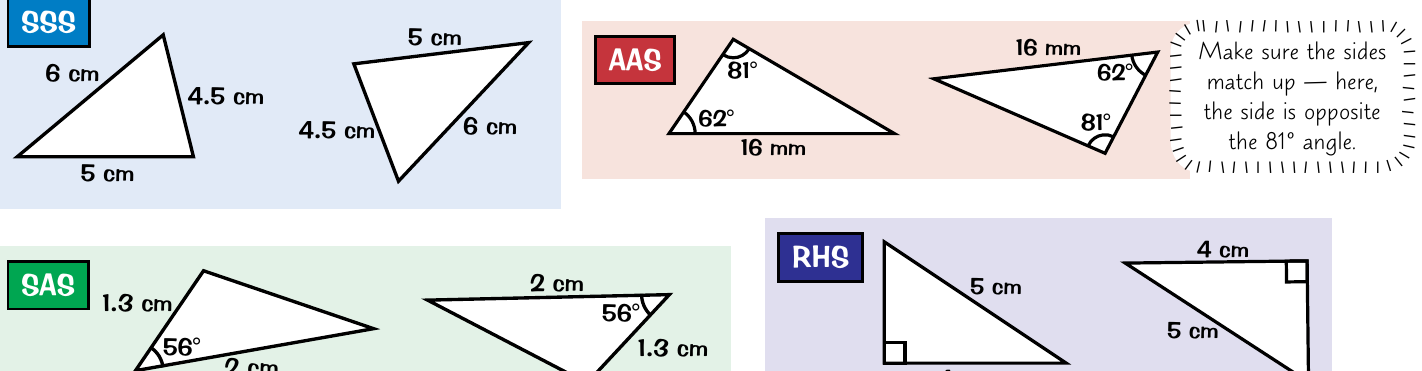

The four conditions for proving triangles are congruent
1. SSS (Side-Side-Side)
SSS (Side-Side-Side)
This condition requires that all three sides of one triangle are exactly the same length as the corresponding three sides of the other triangle. When you have three matching sides, the triangles must be congruent because there's only one way to arrange three specific lengths into a triangle shape.
2. AAS (Angle-Angle-Side)
AAS (Angle-Angle-Side)
For this condition, you need two angles and one corresponding side to match between the triangles. The corresponding side is the one that appears in the same position relative to the matching angles. This works because once you know two angles of a triangle, the third angle is automatically determined (since angles in a triangle always add up to ).
3. SAS (Side-Angle-Side)
SAS (Side-Angle-Side)
This condition requires two sides and the angle that sits between them to match. The key word here is "between" - the angle must be contained by the two sides you're measuring. This is different from having two sides and a random angle elsewhere in the triangle.
4. RHS (Right angle-Hypotenuse-Side)
RHS (Right angle-Hypotenuse-Side)
This special condition only applies to right-angled triangles. You need a right angle (), the hypotenuse (the longest side opposite the right angle), and one other side to match between the triangles. Remember that the hypotenuse is always the longest side in a right-angled triangle and sits opposite the right angle.
Step-by-step approach to triangle congruence proofs
The most effective way to prove triangles are congruent is to work systematically. Start by writing down every piece of information you can gather about both triangles. Look for given measurements, but also consider what you can deduce from the diagram using your knowledge of geometry.
Pay special attention to parallel lines and circle properties, as these often provide additional angle relationships that aren't immediately obvious. For example, parallel lines create equal corresponding angles, and tangent lines to circles always meet the radius at right angles.
Systematic Approach to Congruence Proofs:
Once you've gathered all available information, examine which of the four conditions (SSS, AAS, SAS, or RHS) you can satisfy with the information you have. Sometimes you might have enough information for multiple conditions - in that case, choose the one that seems most straightforward to explain.

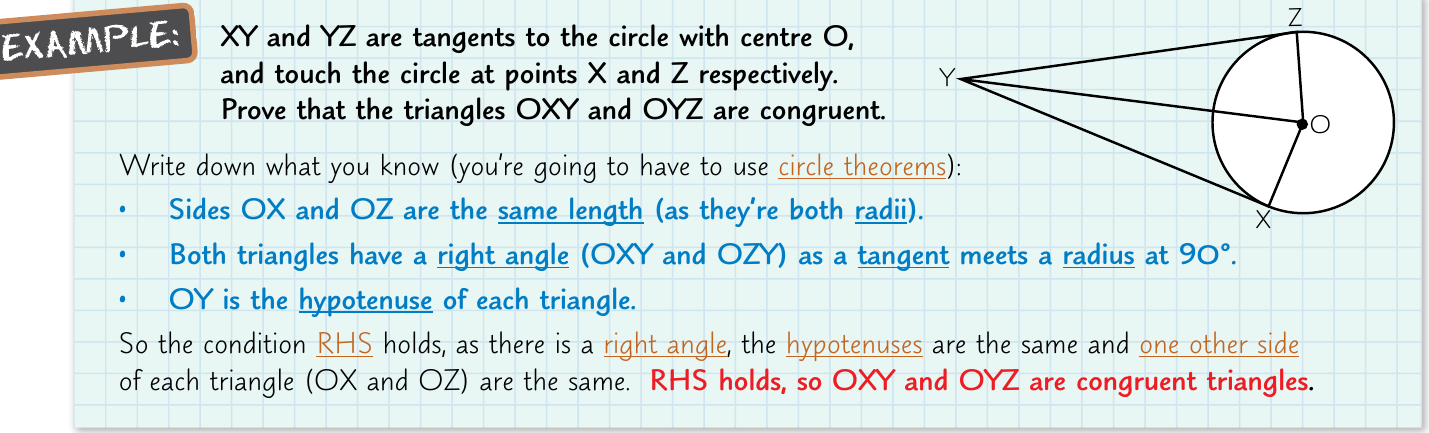

Applying congruence with circle theorems
Circle theorems provide excellent opportunities to use triangle congruence, particularly the RHS condition. When you have tangent lines touching a circle, you automatically know that these tangent lines meet the radius at right angles - this gives you the "R" in RHS.
Circle Theorem Applications:
In circle problems, you often find that radii are equal (since they're all the same length from the centre to the edge), which can provide matching sides for your congruence proof. The combination of right angles from tangent properties and equal radii frequently creates the perfect conditions for RHS congruence.
Practice and application

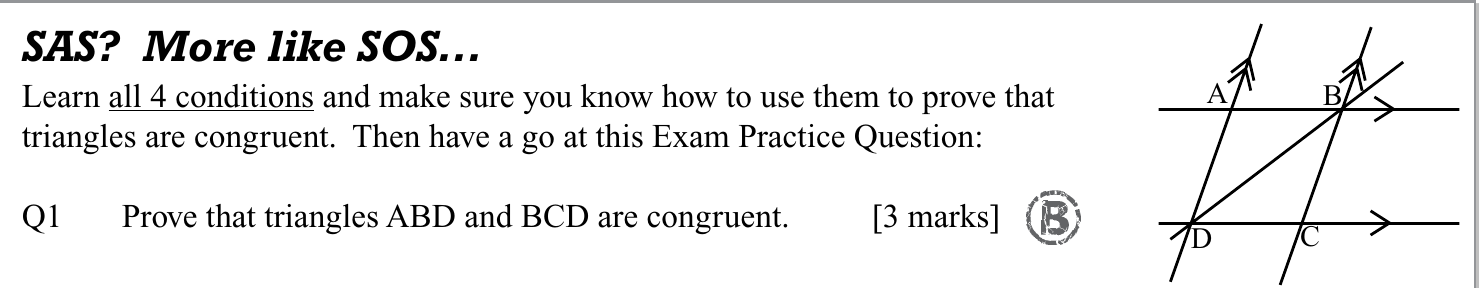

When approaching examination questions about triangle congruence, take your time to identify what information is given and what you need to prove. Draw clear diagrams if they're not provided, and mark equal angles and sides as you identify them.
Examination Strategy:
Remember that proving congruence is often just the first step in a larger problem. Once you've established that triangles are congruent, you can use this fact to prove that corresponding angles are equal or that corresponding sides have the same length.
Remember!
Key Points to Remember:
- Congruent shapes are identical in both size and shape, even if they're reflected or rotated
- You only need to prove ONE of the four conditions (SSS, AAS, SAS, or RHS) to show triangles are congruent
- Always write down all the information you can find before deciding which condition to use
- Circle theorems often provide the right angles and equal sides needed for RHS congruence
- The hypotenuse is always the longest side in a right-angled triangle and sits opposite the right angle
