In Vitro Gene Cloning (AQA A-Level Biology): Revision Notes
In Vitro Gene Cloning
What is in vitro gene cloning?

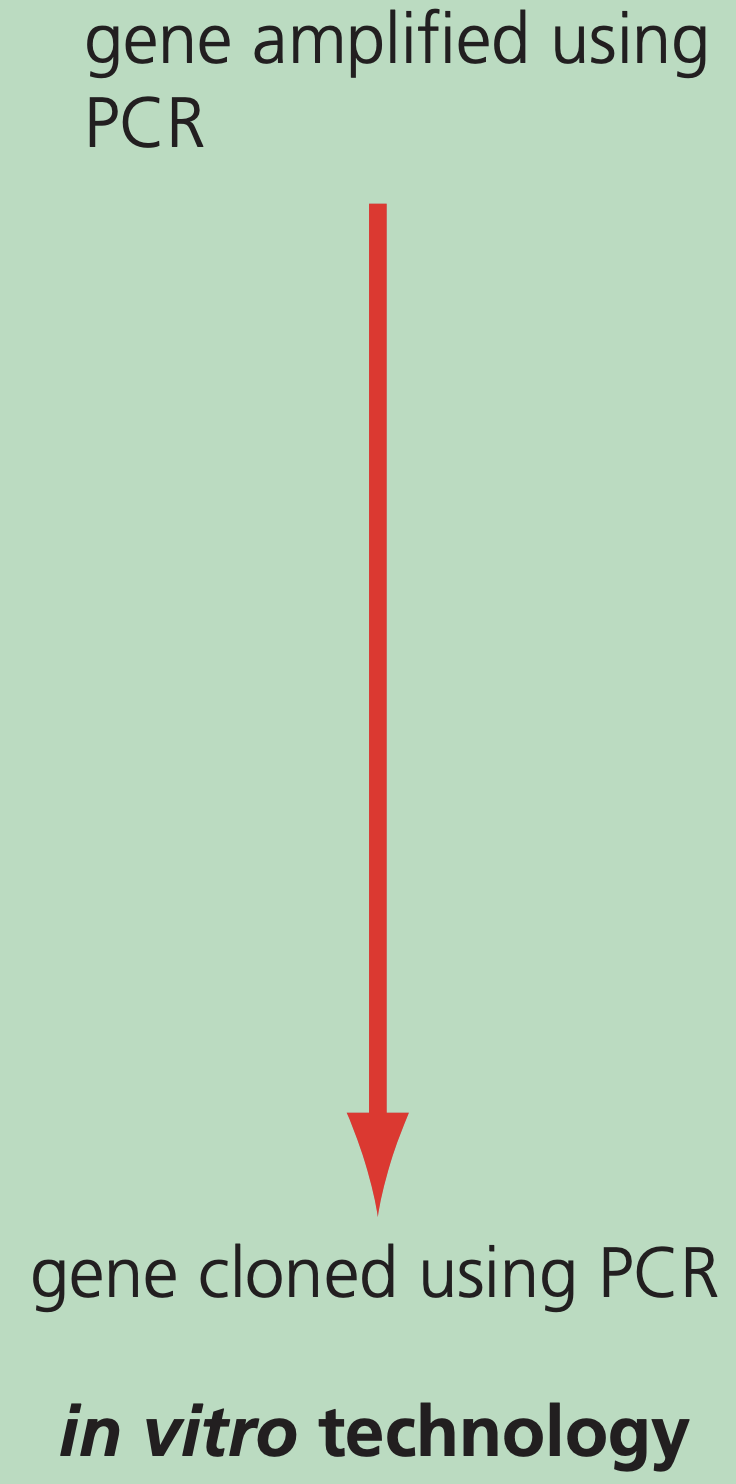

In vitro gene cloning refers to the process of copying DNA fragments outside of living cells, primarily using the polymerase chain reaction (PCR). This automated method allows for rapid and efficient amplification of specific DNA sequences without requiring living organisms.
The term "in vitro" literally means "in glass" and refers to processes performed outside living cells in laboratory conditions, as opposed to "in vivo" which means "in living" organisms.
The polymerase chain reaction (PCR)
Essential components
PCR requires four key components to function effectively:
- DNA fragment - the target sequence to be amplified
- DNA polymerase - an enzyme that joins nucleotides together to form new DNA strands. Taq polymerase is commonly used because it remains stable at high temperatures (thermostable) and can join thousands of nucleotides within minutes
- Primers - short DNA sequences complementary to the ends of the target DNA fragment. These provide starting points for DNA polymerase to begin synthesis
- Nucleotides - the building blocks (A, T, G, C) needed to construct new DNA strands
All four components are absolutely essential - removing any single component will prevent PCR from working. The primers are particularly crucial as they determine exactly which DNA sequence gets amplified.
The thermocycler
A thermocycler is a computer-controlled machine that precisely varies temperature over set time periods. This temperature cycling is essential for the PCR process to work effectively.
The three stages of PCR
PCR operates through a repeating cycle of three temperature-dependent stages:
Worked Example: The Three Stages of PCR
Stage 1: DNA strand separation (95°C)
The high temperature breaks the hydrogen bonds between complementary base pairs, causing the double-stranded DNA to separate into two single strands. This process is called denaturation.
Stage 2: Primer addition/annealing (55°C)
The temperature drops to allow primers to bind (anneal) to their complementary sequences at the ends of each DNA strand. This provides the starting point that DNA polymerase requires to begin synthesis.
Stage 3: DNA synthesis (72°C)
At this optimal temperature for DNA polymerase, the enzyme adds complementary nucleotides to extend from each primer along the template strands. This creates two complete double-stranded DNA molecules from the original single strands.
PCR efficiency
After one complete cycle, the original DNA fragment becomes two copies. Each subsequent cycle doubles the number of copies, leading to exponential amplification. Within 25 cycles, over a million copies can be produced, and 100 billion copies can be generated in just a few hours.
Advantages of in vitro gene cloning
Speed and efficiency
In vitro cloning is extremely rapid compared to biological alternatives. A massive increase in DNA copies can be achieved within hours, making it invaluable when only tiny amounts of DNA are available (such as at crime scenes). Traditional in vivo cloning would require days or weeks to produce equivalent quantities.
Why Speed Matters This rapid amplification is particularly crucial in forensic science, where investigators may have only microscopic DNA samples from crime scenes. PCR can turn these tiny samples into analyzable quantities within hours rather than weeks.
No living cells required
The process works with just the basic DNA sequence and chemical components. No complex cell culture techniques, growth media, or living organisms are needed, simplifying the procedure significantly.
Contamination resistance
Since the process uses specific primers, only the target DNA sequence is amplified. Any contaminating DNA present in the sample will not be copied unless it matches the primer sequences exactly.
Advantages of in vivo gene cloning
Gene transfer applications
In vivo cloning excels when introducing genes into other organisms. Using vectors such as plasmids, genes can be delivered into host cells like bacteria. This enables gene therapy applications and the transformation of organisms with new genetic capabilities.
Vector-Based Systems Plasmids are particularly useful vectors because they can replicate independently within bacterial cells, carrying the cloned gene along with them. This allows for both gene amplification and expression of the gene product.
Reduced contamination risk
Genes processed through in vivo systems can be cut using the same restriction endonuclease enzymes, ensuring clean integration with plasmid vectors. The specificity of these enzymes reduces unwanted DNA contamination.
High accuracy
DNA replication in living cells has sophisticated error-checking mechanisms, resulting in very few copying errors. While modern PCR techniques have improved accuracy considerably, biological systems maintain extremely high fidelity.
Specific gene isolation
In vivo cloning allows researchers to isolate and work with individual genes rather than whole DNA samples, providing precise control over genetic material.
Production of useful products
Transformed bacteria containing cloned genes can produce large quantities of valuable proteins for commercial or medical use, such as human insulin or growth hormones.
Commercial Applications This protein production capability has revolutionised medicine and biotechnology. Bacteria can be engineered to produce human proteins that would be impossible to obtain in large quantities through other means.
Applications and significance
PCR has revolutionised many areas of science and medicine. Even the smallest DNA samples from a single hair or blood speck can be amplified sufficiently for forensic analysis and accurate identification. This technology has become fundamental to genetic research, medical diagnostics, and criminal investigations.
Key Points to Remember:
- PCR amplifies DNA using three temperature stages: 95°C for separation, 55°C for primer annealing, and 72°C for synthesis
- In vitro cloning is faster but in vivo cloning is better for gene transfer and producing functional proteins
- Primers are essential - they provide starting points for DNA polymerase and determine which DNA sequences get copied
- Thermostable DNA polymerase (like Taq polymerase) is crucial because it survives the high denaturation temperatures
- PCR can produce millions of copies from tiny starting amounts, making it invaluable for forensics and research
