Microscope Measurements & Calculations

When studying cells under a light microscope, scientists need accurate methods to determine the size of cellular structures and organisms. The eyepiece graticule provides this measurement capability. This device consists of a glass disc positioned within the microscope's eyepiece, featuring an etched scale that appears as a ruler when viewing specimens.

A standard eyepiece graticule measures approximately 10mm in total length and contains 100 individual divisions marked along its scale. However, the graticule scale cannot directly measure specimen sizes because different objective lenses produce varying levels of magnification, making each division represent different actual distances depending on which lens is being used.

Calibrating the eyepiece graticule

Why calibration is essential

Since each objective lens magnifies specimens to different degrees, the eyepiece graticule must be calibrated for each specific objective lens before accurate measurements can be taken. This calibration process establishes the relationship between graticule divisions and real distances, allowing the same graticule to remain useful across different magnifications.

The calibration process

Calibration requires a specialised slide called a stage micrometre. This precision instrument features an etched scale typically measuring 2mm in total length, with the smallest divisions representing 0.01mm (equivalent to 10μm). The stage micrometre provides the known reference measurements needed for calibration.

To calibrate an eyepiece graticule:

1. Place the stage micrometre on the microscope stage

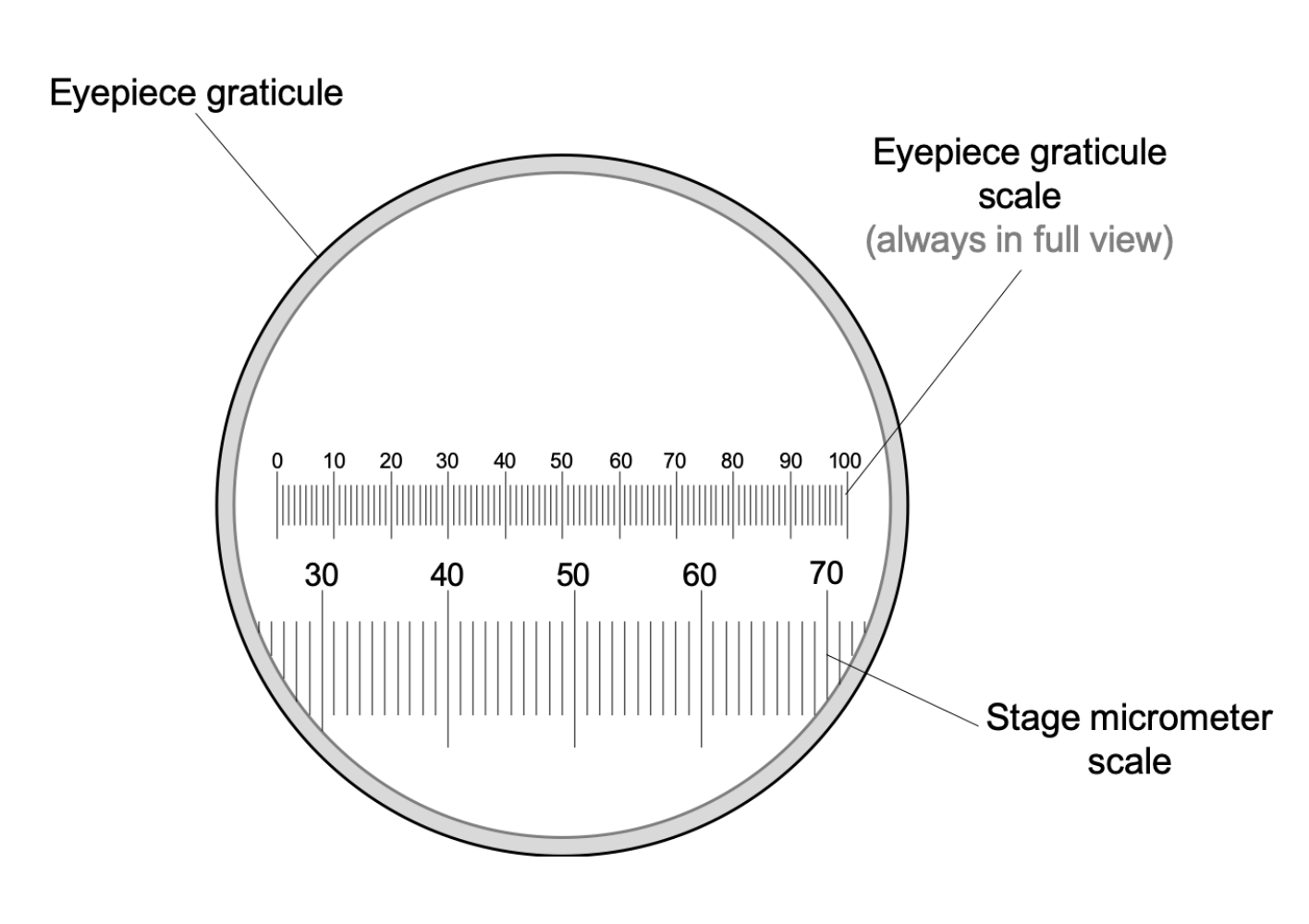

2. Align the scales of both the eyepiece graticule and stage micrometre
3. Count how many graticule divisions correspond to a known number of micrometre divisions
4. Calculate the value of each graticule division for that specific objective lens

Calibration calculations

The calibration process involves establishing ratios between the two scales.

For different objective lenses, you can calculate new calibrations by considering magnification differences. If a ×40 objective gives a calibration of 2.5μm per graticule unit, then a ×400 objective (10 times greater magnification) would give 2.5μm ÷ 10 = 0.25μm per graticule unit.

Calculating linear magnifications from images

Understanding magnification calculations

When examining photographs or drawings of microscopic specimens, you can determine the linear magnification using the relationship between the image size and the actual specimen size. This calculation helps verify the scale of microscopic images and understand the degree of enlargement.

The magnification formula

$\text{Magnification} = \frac{\text{Image size}}{\text{Actual size}}$

Working through magnification examples

Consider a photograph showing a cellular structure where a line marked X—Y represents a 5μm length in the actual cell. This type of measurement is common when analysing microscopic images.

Calculating actual sizes from images

Determining real specimen dimensions

When you know both the magnification and the measured size in an image, you can work backwards to find the actual size of cellular structures. This reverse calculation proves particularly useful when analysing electron micrographs or scaled drawings.

The actual size formula

$\text{Actual size} = \frac{\text{Image size}}{\text{Magnification}}$

Practical example with mitochondria

Using an electron micrograph magnified 4,600 times, you can determine the actual size of cellular organelles by measuring them on the photograph and applying the reverse calculation.

Important considerations for measurements

When measuring cellular structures that aren't perfectly spherical, take multiple diameter measurements and calculate the mean value for greater accuracy. This approach accounts for natural variations in organelle shape and provides more reliable size estimates.
