17 – Studying the Effect of Temperature on Reaction Rate
Introduction and aim
This experiment investigates how changing temperature affects the speed of a chemical reaction. We use the reaction between sodium thiosulfate solution and hydrochloric acid, which produces a cloudy precipitate that gradually obscures our view. By timing how long it takes for a cross underneath the flask to disappear, we can measure reaction rates at different temperatures.
infoNote
The cross obscuration method is a simple but effective way to measure reaction progress. As the precipitate forms, it gradually blocks light passing through the solution, providing a clear endpoint for timing measurements.
The key principle being tested is that higher temperatures generally increase reaction rates, making chemical processes occur more rapidly.
Materials and equipment
- Conical flasks
- Graduated cylinders
- 0.05M sodium thiosulfate solution
- Dilute hydrochloric acid solution
- Stopwatch
- Hot plate for heating
- White paper with cross drawn on it
- Thermometer
Experimental procedure
The experiment follows a systematic approach to measure reaction times at various temperatures:
lightbulbExample
Worked Example: Conducting the Temperature-Rate Experiment
Step 1: Setting up the experiment
- Place a conical flask on a sheet of white paper marked with a clear cross
- Using a graduated cylinder, measure and pour a fixed amount of sodium thiosulfate solution into the flask
- Heat or cool the solution to the desired starting temperature
Step 2: Conducting the reaction
- Add a measured quantity of hydrochloric acid to the sodium thiosulfate solution
- Immediately swirl the flask and start the stopwatch
- Look down through the solution at the cross underneath
- When the precipitate becomes thick enough that the cross can no longer be seen clearly, stop the timer
- Record both the time taken and the temperature of the solution
Step 3: Collecting data across temperature range
- Wash the flask thoroughly between trials
- Repeat the procedure at different temperatures ranging from 15°C to 70°C
- For higher temperatures, use a hot plate to warm the solutions before mixing
chatImportant
Critical Timing Point: The exact moment when the cross disappears can be subjective. To ensure consistent results, always use the same observer and maintain the same viewing angle throughout all trials.
Data collection and recording

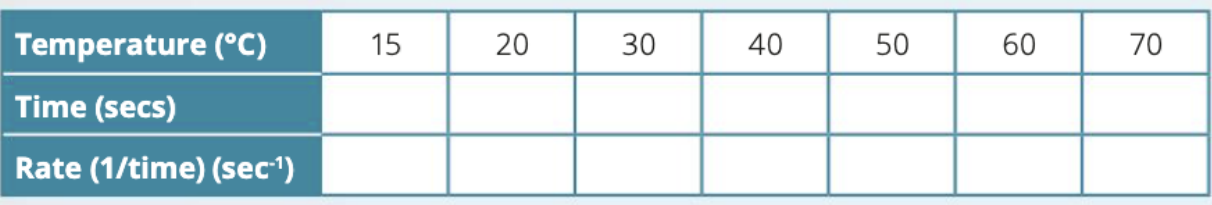

The results are organised in a systematic table showing temperature, reaction time, and calculated reaction rate. The rate is calculated as the reciprocal of time , measured in sec⁻¹. This means faster reactions have higher rate values.
infoNote
Using the reciprocal of time as the rate measure creates a convenient relationship where higher numbers represent faster reactions, making data interpretation more intuitive.
Data analysis and graphing
The experimental results can be analysed using two different graphical approaches:
Graph 1 - Time versus temperature: This graph shows how reaction time changes with temperature. As temperature increases, the time taken for the cross to disappear decreases significantly. The relationship follows a curved pattern, not a straight line, indicating that temperature has a dramatic effect on reaction speed.
Graph 2 - Rate versus temperature:
When we plot reaction rate against temperature, we see an exponential increase. This means that small increases in temperature lead to large increases in reaction rate. The curve shows that the effect becomes more pronounced at higher temperatures.
infoNote
The two graphs show the same data but reveal different aspects of the temperature-rate relationship. The time vs temperature graph emphasises how reaction times decrease, while the rate vs temperature graph highlights the accelerating effect of temperature increases.
Key findings and observations
chatImportant
Major Discovery: The experiment reveals several important patterns that are fundamental to chemical kinetics:
- Inverse relationship with time: Higher temperatures result in shorter reaction times
- Exponential relationship with rate: Reaction rate increases dramatically with temperature
- Quantitative rule: For many chemical reactions, the rate approximately doubles for every 10°C increase in temperature
This temperature effect explains why industrial chemical processes are often carried out at elevated temperatures to increase production rates, and why food spoils faster in warm conditions.
Scientific principles explained
Why does temperature increase reaction rate?
Higher temperatures provide reactant molecules with more kinetic energy. This means:
- Molecules move faster and collide more frequently
- More collisions have sufficient energy to overcome the activation energy barrier
- A greater proportion of collisions result in successful reactions
infoNote
Activation Energy Concept
Every chemical reaction requires a minimum amount of energy (activation energy) before it can proceed. Think of this like a hill that molecules must climb before they can react. Higher temperatures give more molecules enough energy to reach the top of this "energy hill."
Industrial applications: Understanding temperature effects on reaction rates is crucial in:
- Manufacturing processes (faster production at higher temperatures)
- Food preservation (lower temperatures slow spoilage reactions)
- Catalyst development (finding optimal operating temperatures)
bookmarkSummary
Key Points to Remember:
- Higher temperature = faster reaction rate - this is a fundamental principle in chemistry
- The cross method provides a simple way to measure reaction rates by timing precipitate formation
- Rate = 1/time - faster reactions have higher rate values
- Doubling rule - reaction rates approximately double every 10°C temperature increase
- Two types of graphs show the relationship: time vs temperature (curved, decreasing) and rate vs temperature (curved, increasing exponentially)
