Open Pit Mining (Leaving Cert Engineering): Revision Notes
Open Pit Mining
Open pit mining is a surface extraction method used to remove metal ores from deposits located at or near the Earth's surface. This method involves creating large excavations to access valuable minerals and metals.
Understanding surface mining methods
Metal ores can be challenging to locate and extract, particularly when they exist below ground or even beneath water bodies. Various extraction methods have been developed to address these challenges effectively.
The location and depth of ore deposits determine which extraction method will be most suitable and cost-effective for mining operations.
Open pit mining operations

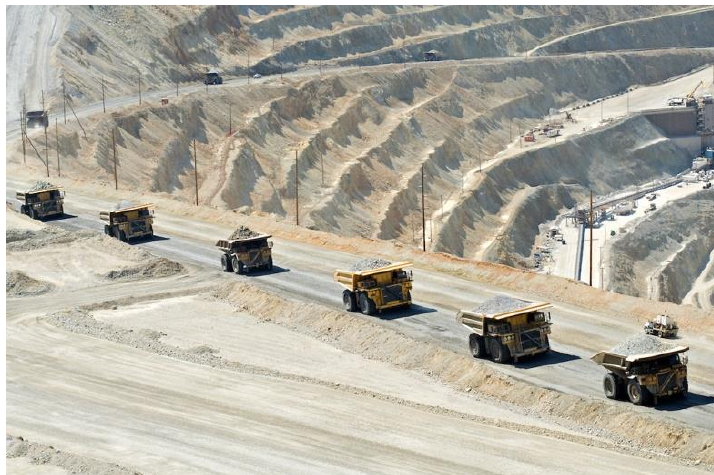

Open pit mining is used when ore deposits are located near the surface but extend deep underground. This method involves creating massive excavations that can reach hundreds of metres in depth.
The extraction process occurs gradually over many years. Heavy plant machinery and explosives are used to systematically remove ore from increasingly deeper levels. The mine develops a characteristic terraced structure with stepped levels called benches.
Key features of open pit mines
The Terraced Design Structure
The terraced design serves multiple purposes:
- Provides stable working platforms for heavy machinery
- Allows safe access roads for transport vehicles
- Prevents dangerous rock falls and slope failures
- Enables systematic extraction from different levels
Mining equipment and operations
Modern open pit mines rely on massive industrial equipment designed to handle the scale of these operations:
- Dump trucks - transport extracted materials along winding access roads
- Excavators - remove overburden and extract ore
- Bulldozers - level surfaces and maintain roads
- Drilling equipment - creates holes for explosive placement
Mining Operation Process:
Step 1: Survey teams identify ore location and depth Step 2: Drilling equipment creates holes for explosive placement Step 3: Controlled explosions break up rock and ore Step 4: Excavators load broken material into dump trucks Step 5: Trucks transport material via terraced access roads
Environmental and social considerations
Open pit mining operations have significant environmental impacts that must be carefully managed:
Critical Environmental Impacts:
- Landscape modification - creates permanent changes to natural topography
- Habitat destruction - removes existing ecosystems
- Community displacement - may affect nearby residential areas
- Air and water quality - dust and runoff can impact surrounding areas
However, modern operations include reclamation processes to restore mined areas after extraction is complete.
Key Points to Remember:
- Open pit mining creates deep, terraced excavations for extensive ore bodies
- This method uses heavy plant machinery to remove overburden and extract ore
- Environmental impact is a major consideration, with permanent landscape changes
- Terraced benches provide safe working levels and access routes in deep pits
