Bending Force
What are forces in materials?
All materials that experience failure do so because of specific forces acting upon them. These forces vary in both their strength (magnitude) and their behaviour (nature). Understanding how forces affect materials is crucial for engineers who need to select the right materials for different applications.
The key challenge in engineering is finding the best balance between material properties and the forces they must withstand. No material can resist all forces perfectly, so engineers must make informed compromises.
Understanding bending force
Bending force is a complex type of force that combines both compression and tension within the same material. When a bending force acts on a material, it creates two distinct effects simultaneously:
- One side of the material experiences compression (squeezing effect)
- The opposite side experiences tension (stretching effect)
This dual action makes bending forces more complicated than simple compression or tension forces acting alone.
How bending forces work
When a material bends under load, the internal structure experiences different stresses. The compressed side tries to push inward while the stretched side tries to pull apart. This creates internal stress patterns that can lead to material failure if the forces exceed the material's capabilities.
The challenge with bending forces is that a material must be able to handle both compression and tension simultaneously. This is why material selection becomes critical in applications where bending forces are expected.
Real-world applications

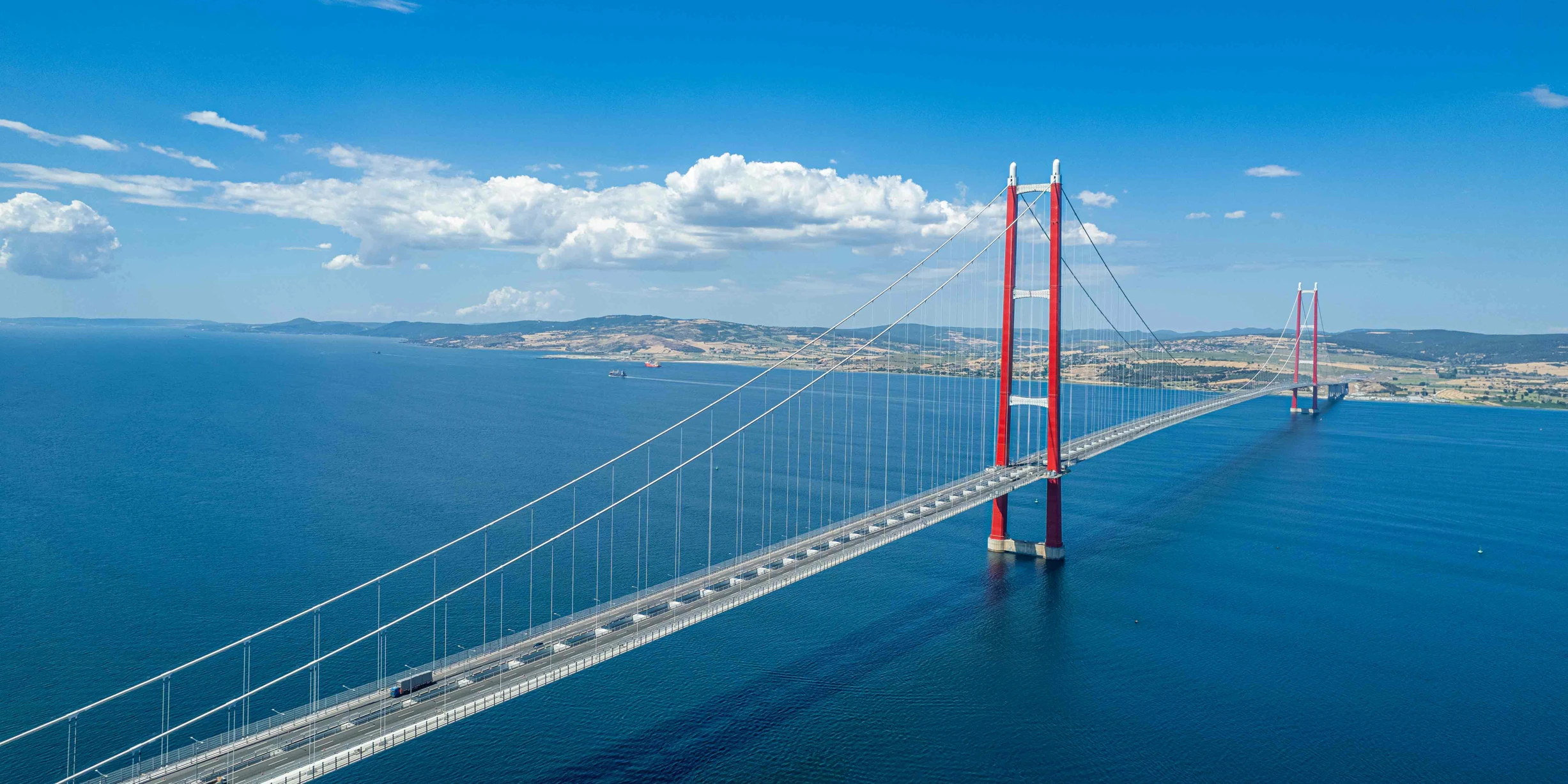

Bridge construction
Bridges provide an excellent demonstration of how bending forces work in practical engineering applications.
Real-World Example: Bridge Design
Bridges provide an excellent example of bending forces in action. The weight of traffic and the bridge's own weight create bending forces along the bridge structure. Modern bridge construction addresses this challenge through careful material selection and design.
Reinforced concrete
Understanding how engineers solve bending force challenges helps illustrate the practical importance of this concept.
Engineering Solution: Reinforced Concrete
Reinforced concrete represents an engineering solution to bending force challenges. This material combines:
- Traditional concrete - excellent at handling compression forces
- Steel rods or mesh - excellent at handling tension forces
In this combination, the concrete manages the compressive loads while the steel handles the tensile loads. This creates a material system that can effectively resist bending forces by utilising each component's strengths.
Why bending forces matter
Engineers must carefully consider bending forces when designing structures because understanding these forces is essential for safe and effective design.
Key Considerations for Engineers:
- Materials behave differently under bending compared to simple compression or tension
- Material failure often occurs at the point where bending forces exceed material capabilities
- Proper understanding leads to safer, more efficient designs
- Cost-effective solutions require matching material properties to expected forces
Key Points to Remember:
- Bending forces combine both compression and tension in the same material
- The compressed side squeezes inward while the opposite side stretches outward
- Bridge construction commonly involves managing bending forces through design
- Reinforced concrete uses steel and concrete together to handle both compression and tension
- Material selection is crucial when bending forces are expected in engineering applications
